Model: DZ163
File

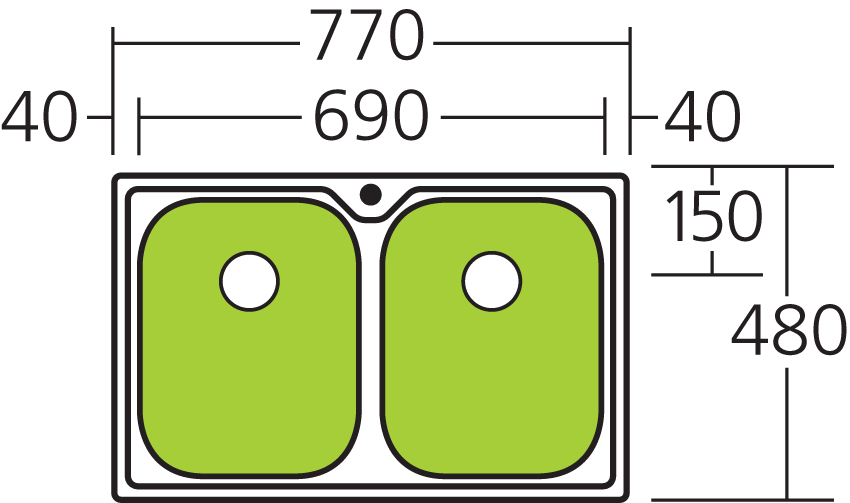

Technical Drawing
File
Made in Australia

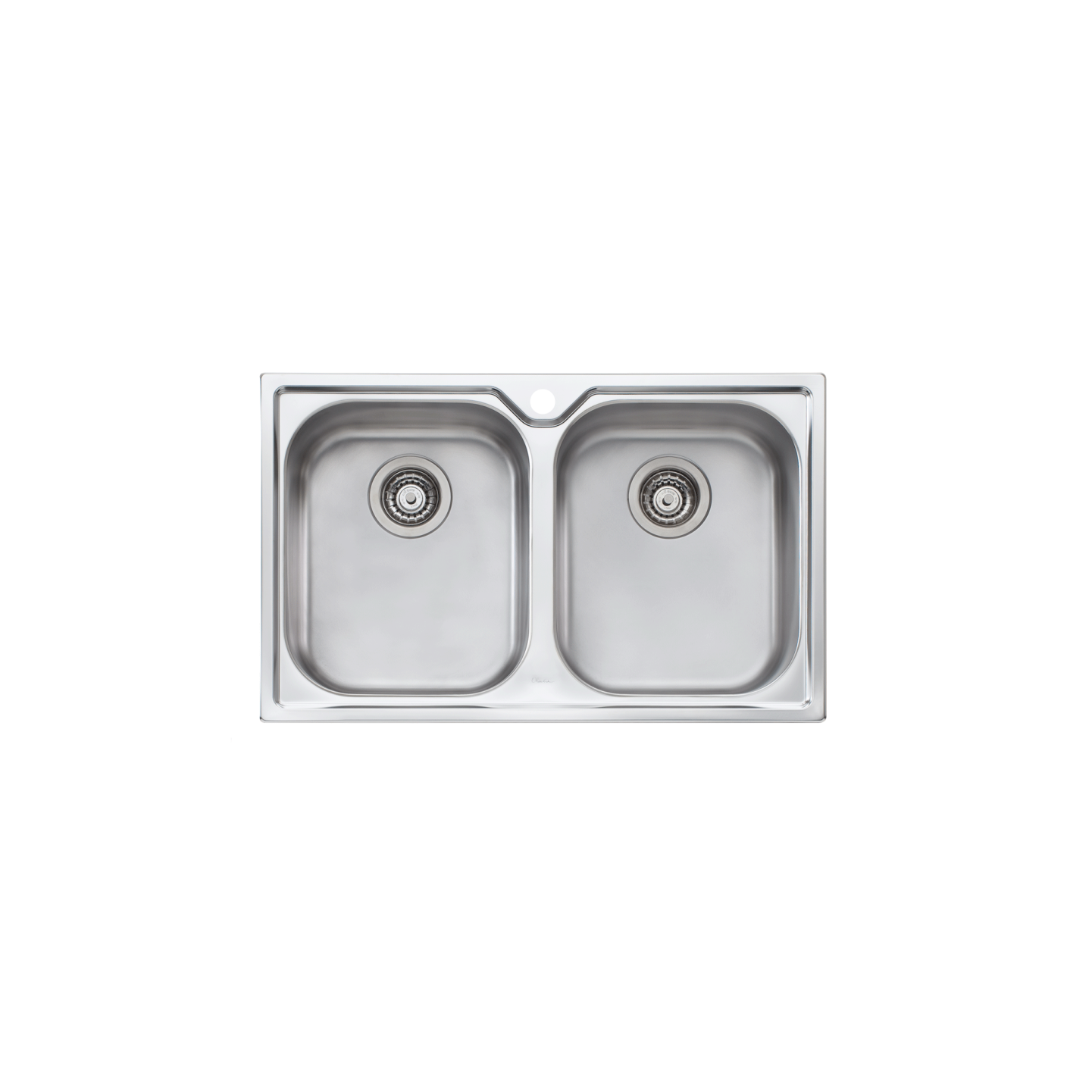

Diaz Double Bowl Topmount Sink


Product Information

Construction 2 piece, bowls & rim seam welded
Material 304 grade, 18/10 polished stainless steel (0.8mm thick)
Installation Topmount
Fixings Adjustable clips and sealing foam supplied
Cut out template 750 x 460 x 15mm radius
Weight 6.5kg
Min cabinet size 800mm
Tap Holes Available 0 or 1 tap hole (specify when ordering)
Waste fittings 2 x 90mm basket wastes included
Overflow Not available
Carton size 780 x 480 x 200mm
Warranty Lifetime manufacturer’s warranty
Number of bowls 2
Made in Australia

Diaz Double Bowl Topmount Sink
