Model: DZ153
File

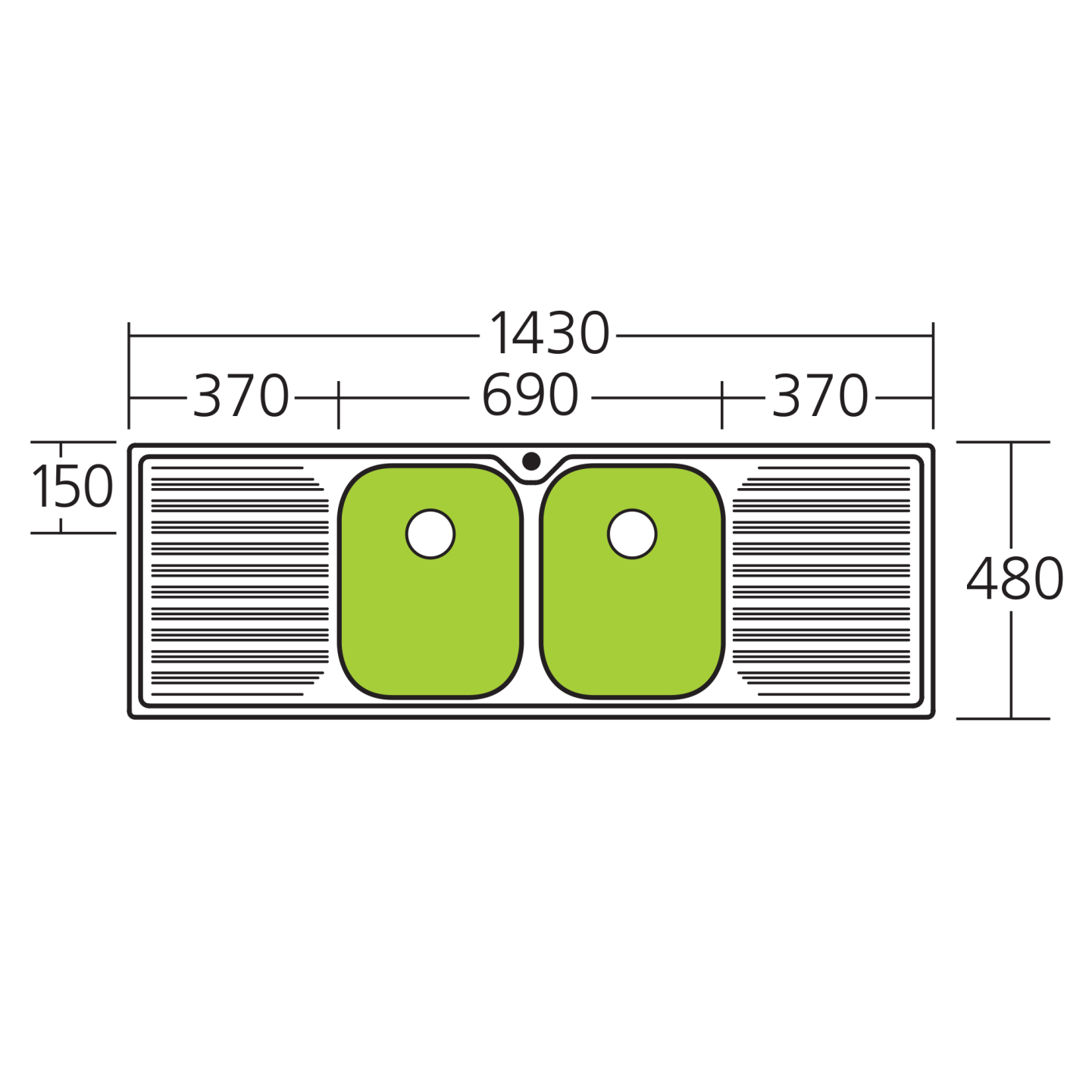

DZ153 Technical Drawing
File
DZ153 includes bamboo chopping board (AC15) and colander (AC18)
File
Made in Australia

Diaz Double Bowl Sink With Double Drainer


Product Information

Construction 2 piece, bowls & drainer seam welded
Material 304 grade, 18/10 polished stainless steel (0.8mm thick)
Installation Topmount
Fixings Adjustable clips and sealing foam supplied
Cut out template 1410 x 460 x 15mm radius
Weight 10.0kg
Min cabinet size 800mm
Tap Holes Available 0 or 1 tap hole (specify when ordering)
Waste fittings 2 x 90mm basket wastes included
Overflow Not available
Carton size 1550 x 560 x 240 mm
Warranty Lifetime manufacturer’s warranty (refer to Service and Warranty page)
Extra wide No
Number of bowls 2
Made in Australia

Diaz Double Bowl Sink With Double Drainer
