Model: SN1021
File
Model: SN1022
File

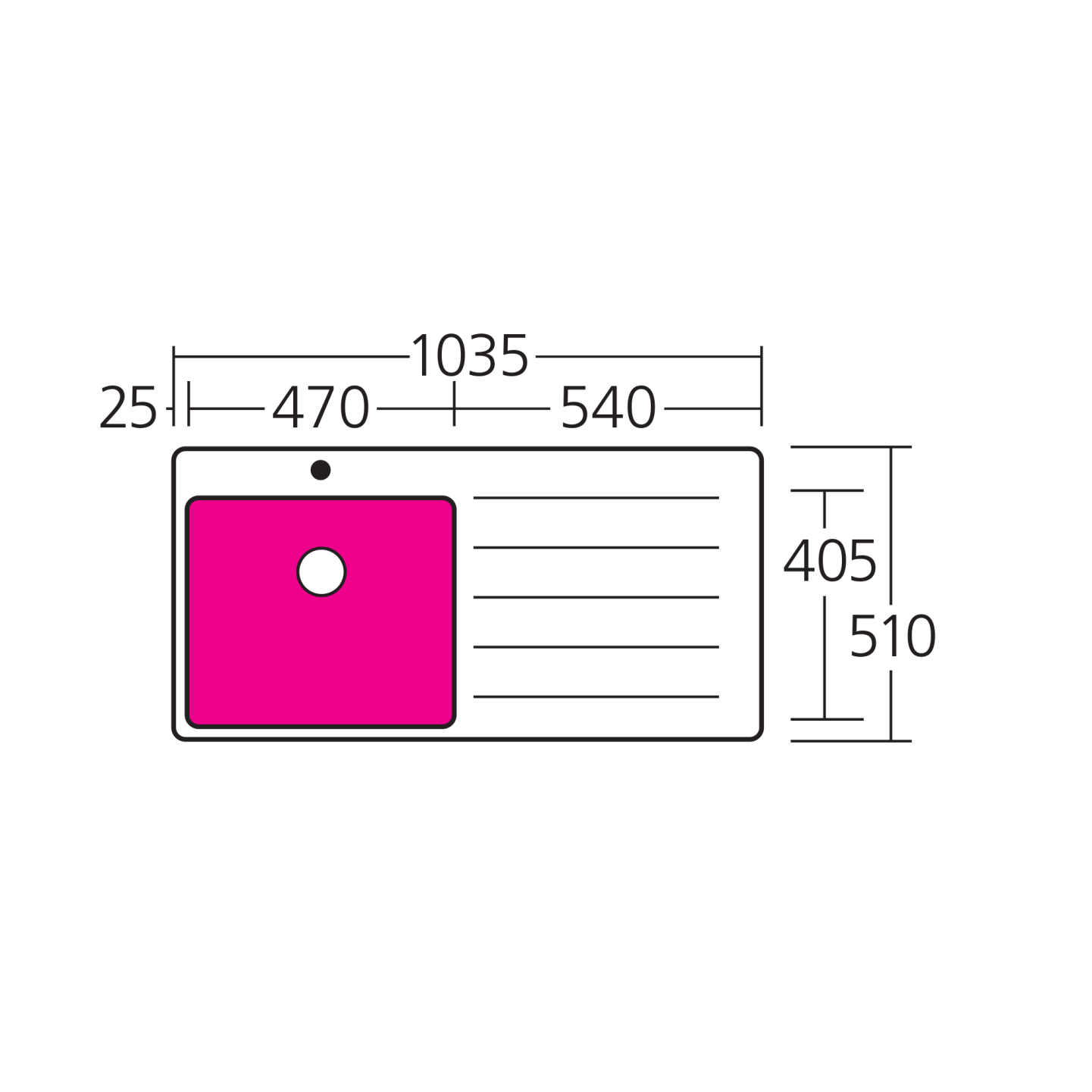

SN1021 Technical Drawing
File

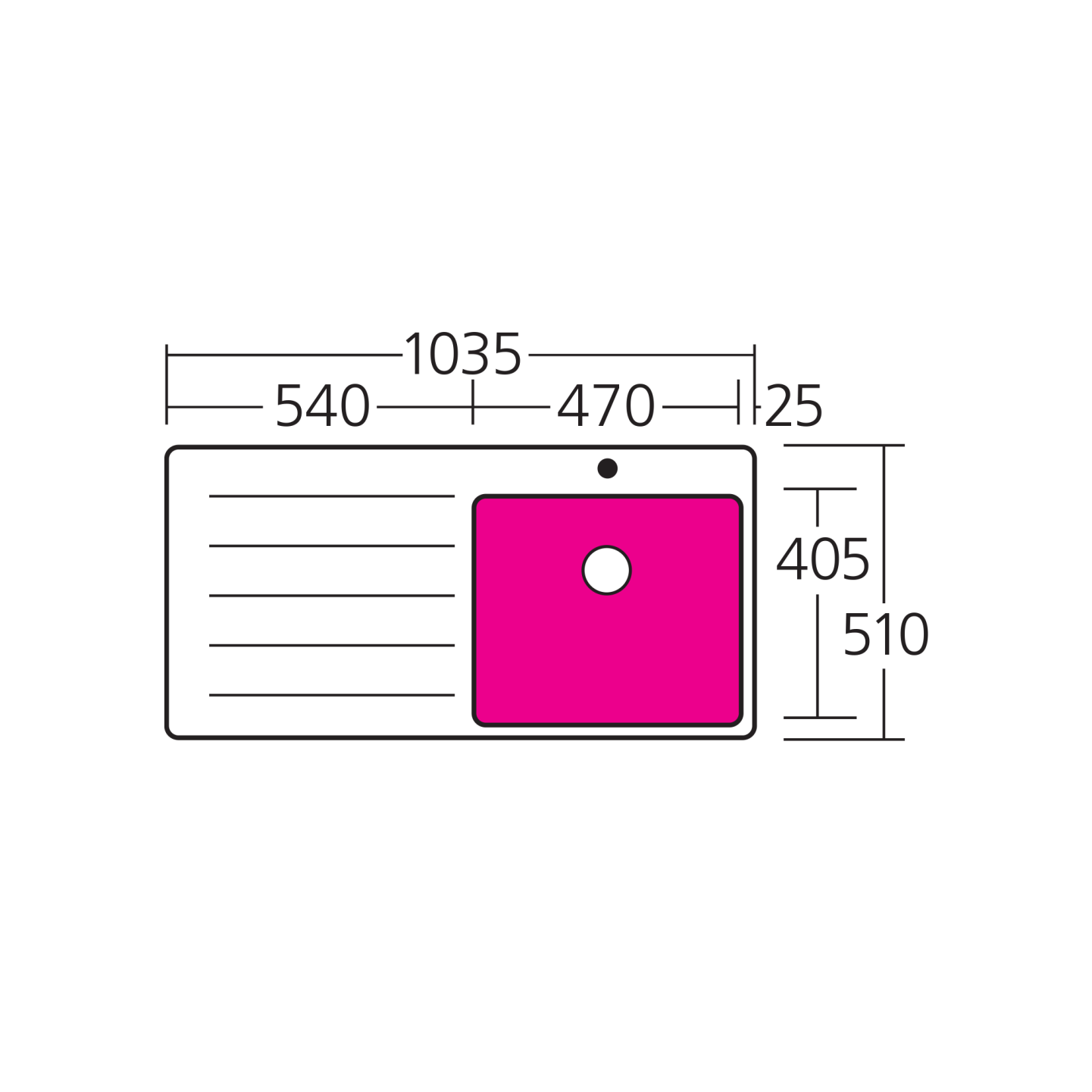

SN1022 Technical Drawing
File
SN1021 / SN1022 includes bamboo chopping board (ACP104F)
File

Sonetto Single Bowl Topmount Sink With Drainer


Product Information

Construction Fabricated with 25mm radius corners, Softtone and soundproofing.
Material 304 grade, 18/10 brushed stainless steel (1.2mm thick)
Installation Topmount
Number of bowls 1
Fixings Topmount clips supplied
Cut out template 1019 x 494 x 10mm radius
Weight 14.0kg
Min cabinet size 600mm
Tap Holes Available 1 tap hole only
Waste fittings 1 x 90mm basket waste included
Overflow Not available
Carton size 1090 x 560 x 255mm
Warranty Lifetime manufacturer’s warranty (refer to Service & Warranty Page)

Sonetto Single Bowl Topmount Sink With Drainer
