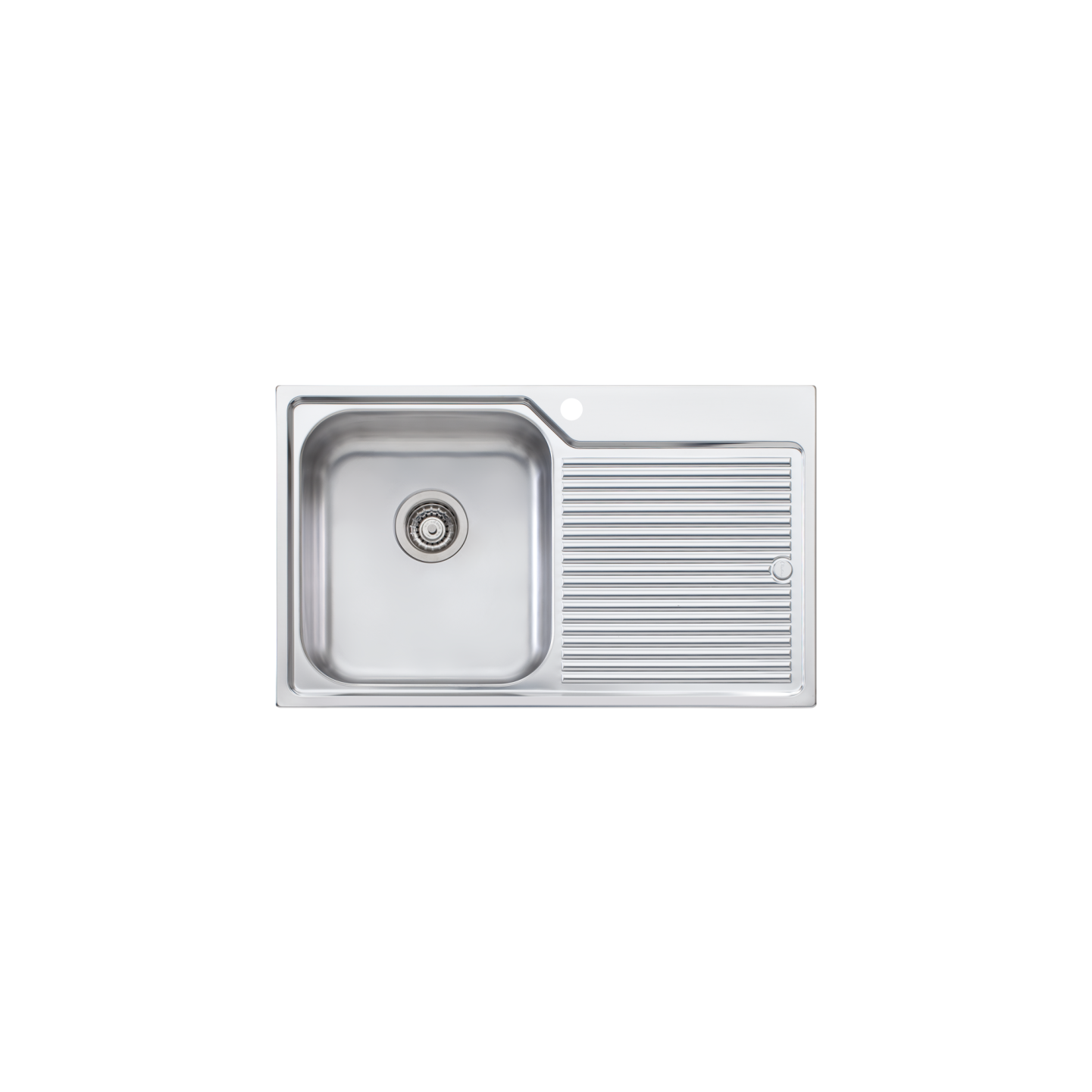

Model: NP621
File

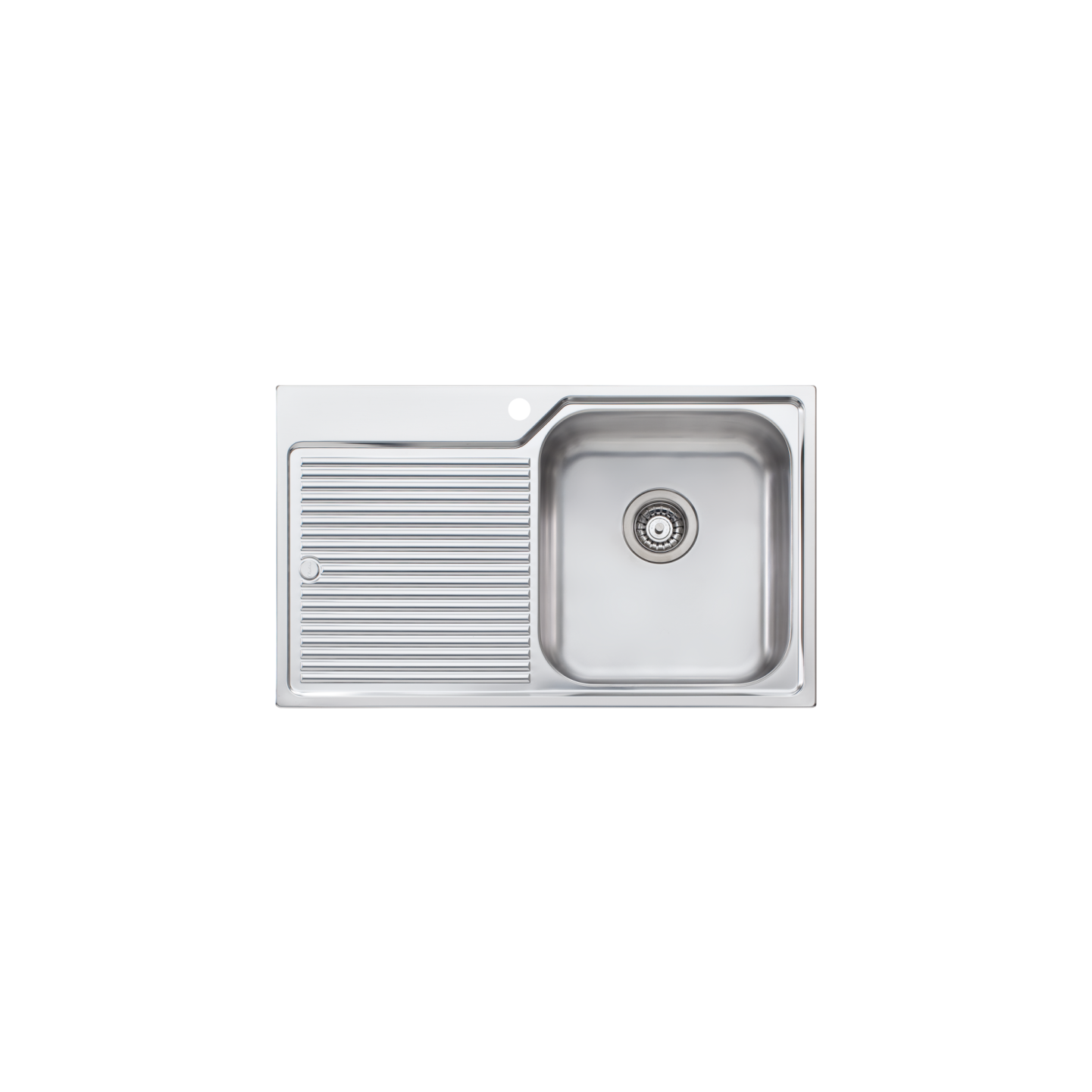

Model: NP622
File

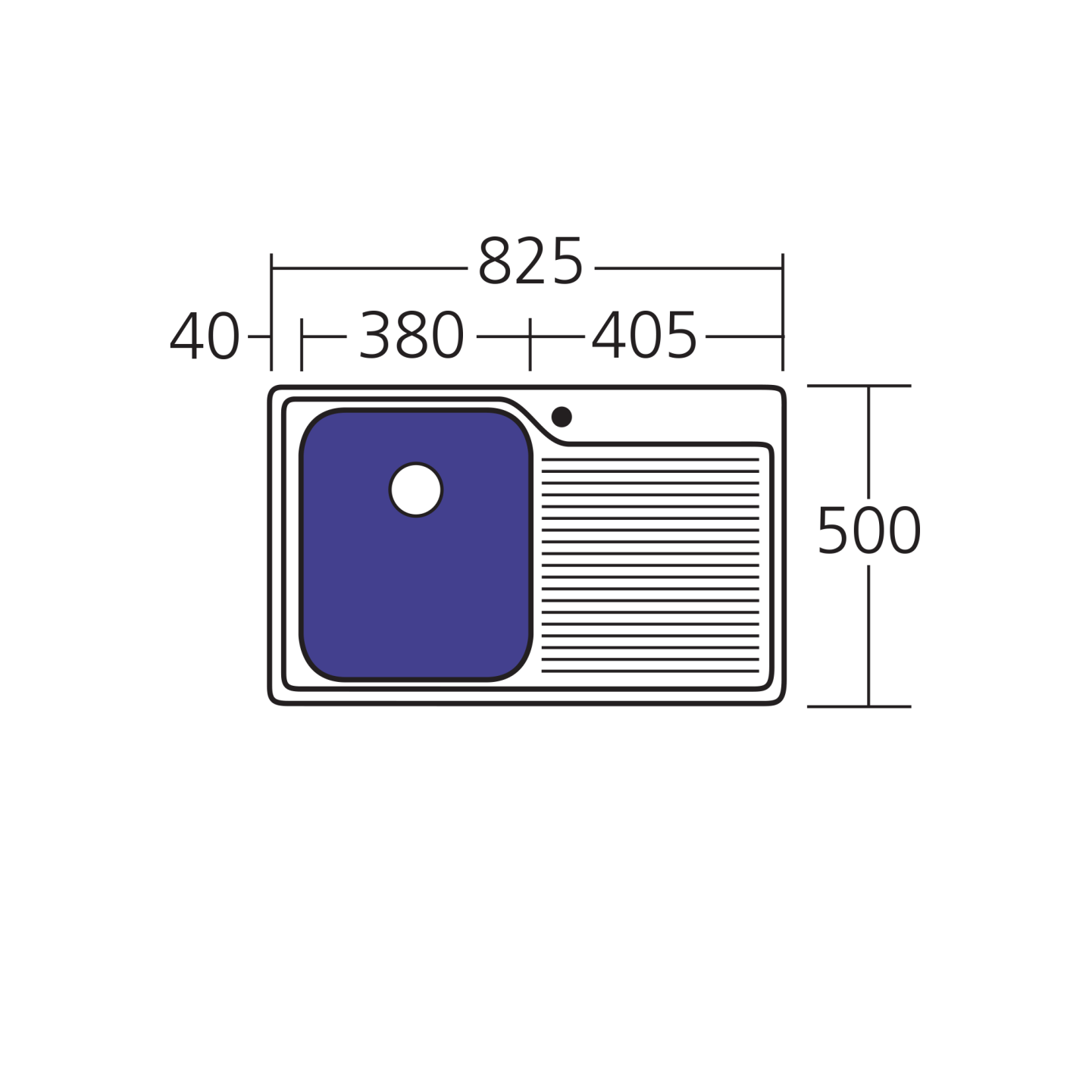

NP621 Technical Drawing
File

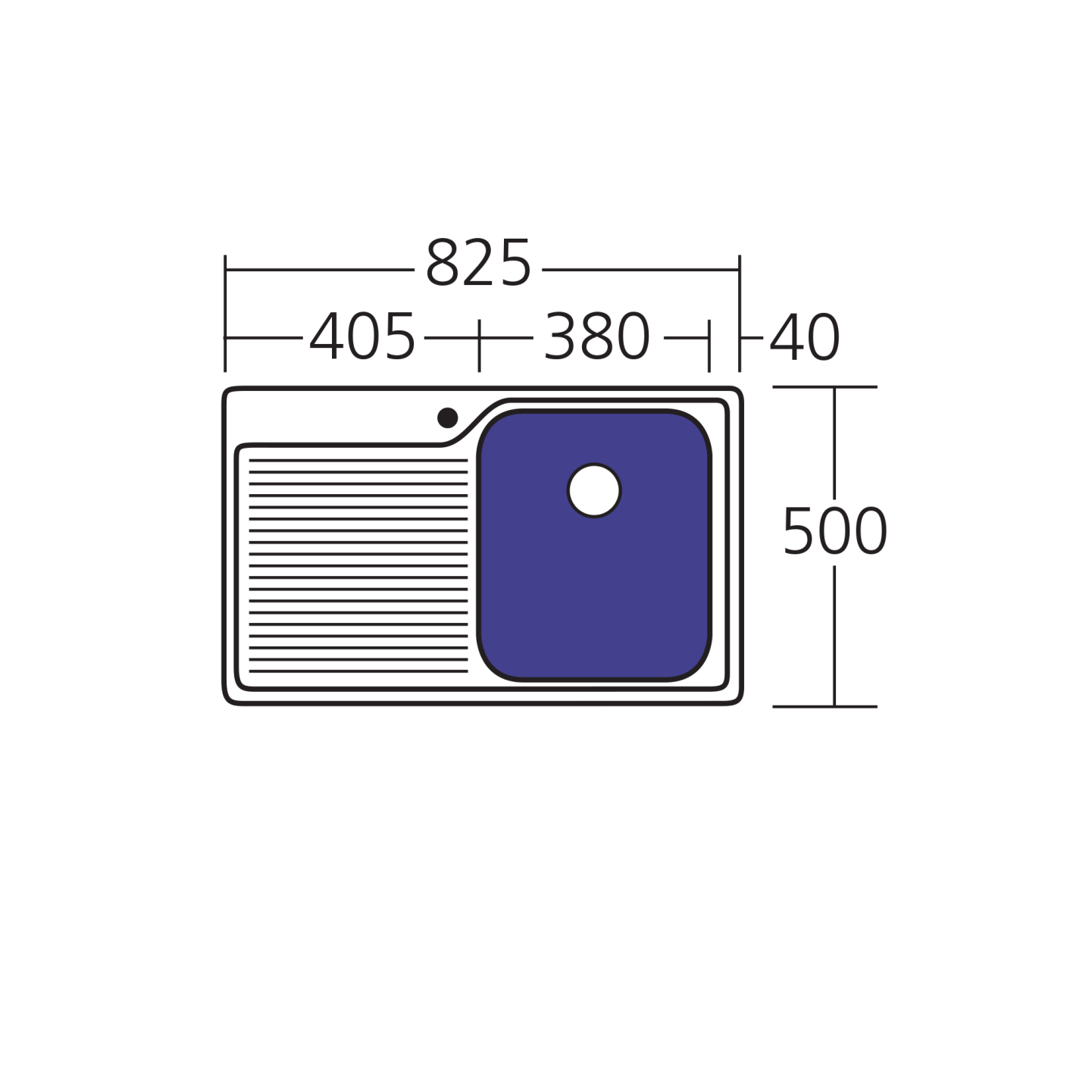

NP622 Technical Drawing
File
NP621 / NP622 includes bamboo chopping board (AC65) and colander (AC62)
File
Made in Australia

Nu-Petite Single Bowl Topmount Sink With Drainer


Product Information

Construction 2 piece, bowl & drainer seam welded
Material 304 grade, 18/10 polished stainless steel (0.8mm thick)
Installation Topmount
Fixings Adjustable clips and sealing foam supplied
Cut out template 805 x 480 x 15mm radius
Weight 7.0kg
Min cabinet size 500mm
Tap Holes Available 0 to 3 tap hole (specify when ordering)
Waste fittings 1 x 90mm basket waste included
Overflow Not available
Carton size 1062 x 567 x 237mm
Warranty Lifetime manufacturer’s warranty (refer to Service and Warranty page)
Extra wide No
Number of bowls 1
Made in Australia

Nu-Petite Single Bowl Topmount Sink With Drainer
