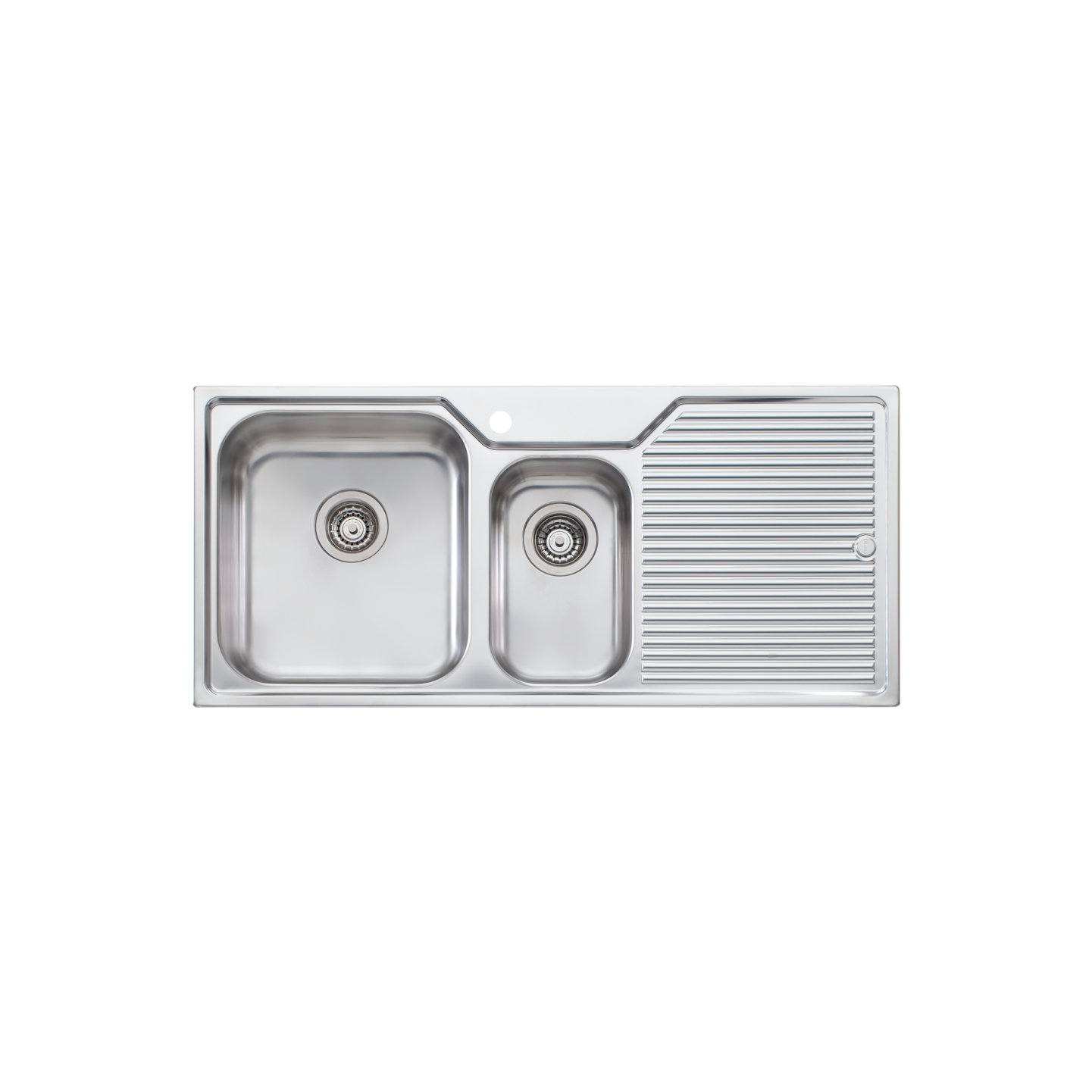

Model: NP601
File

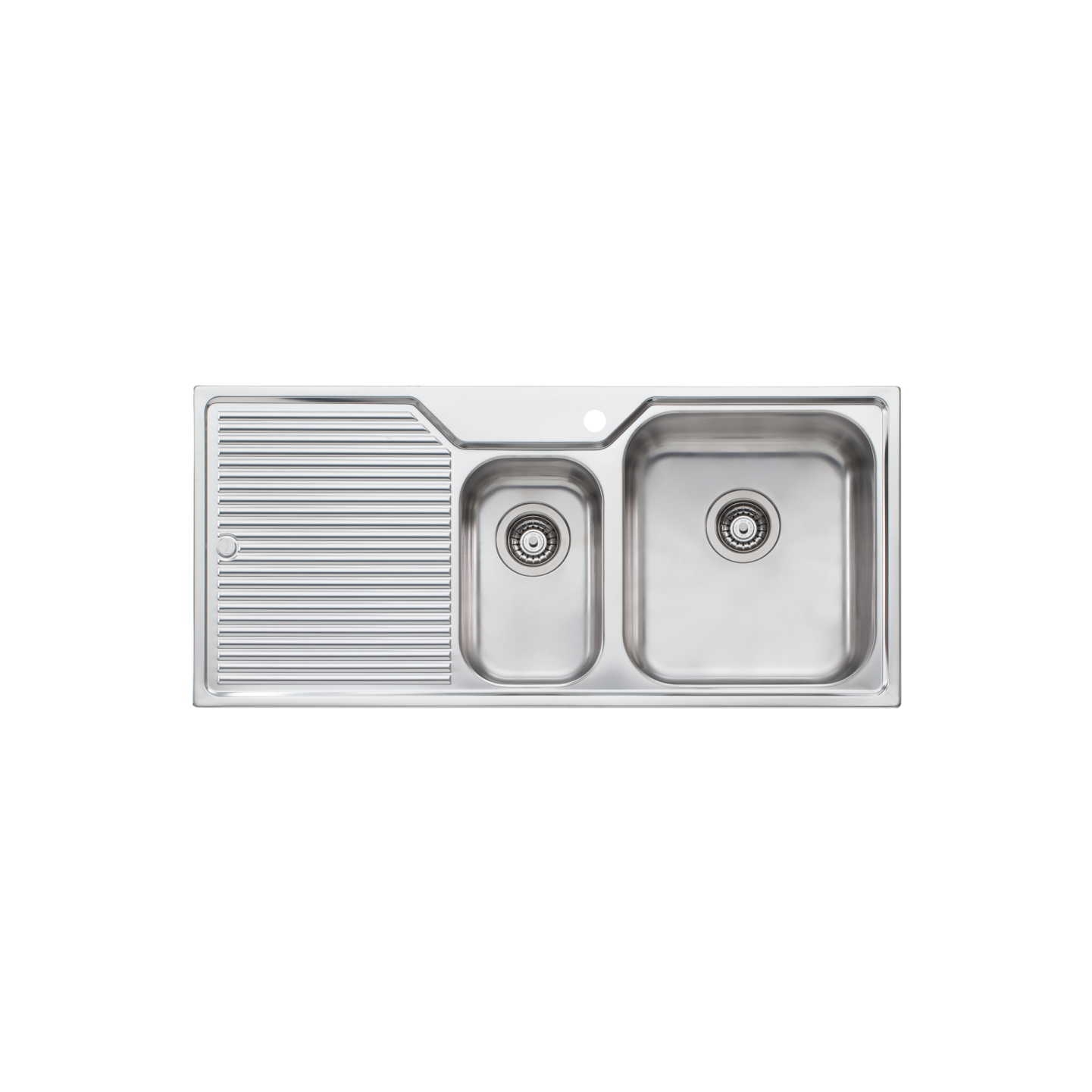

Model: NP602
File

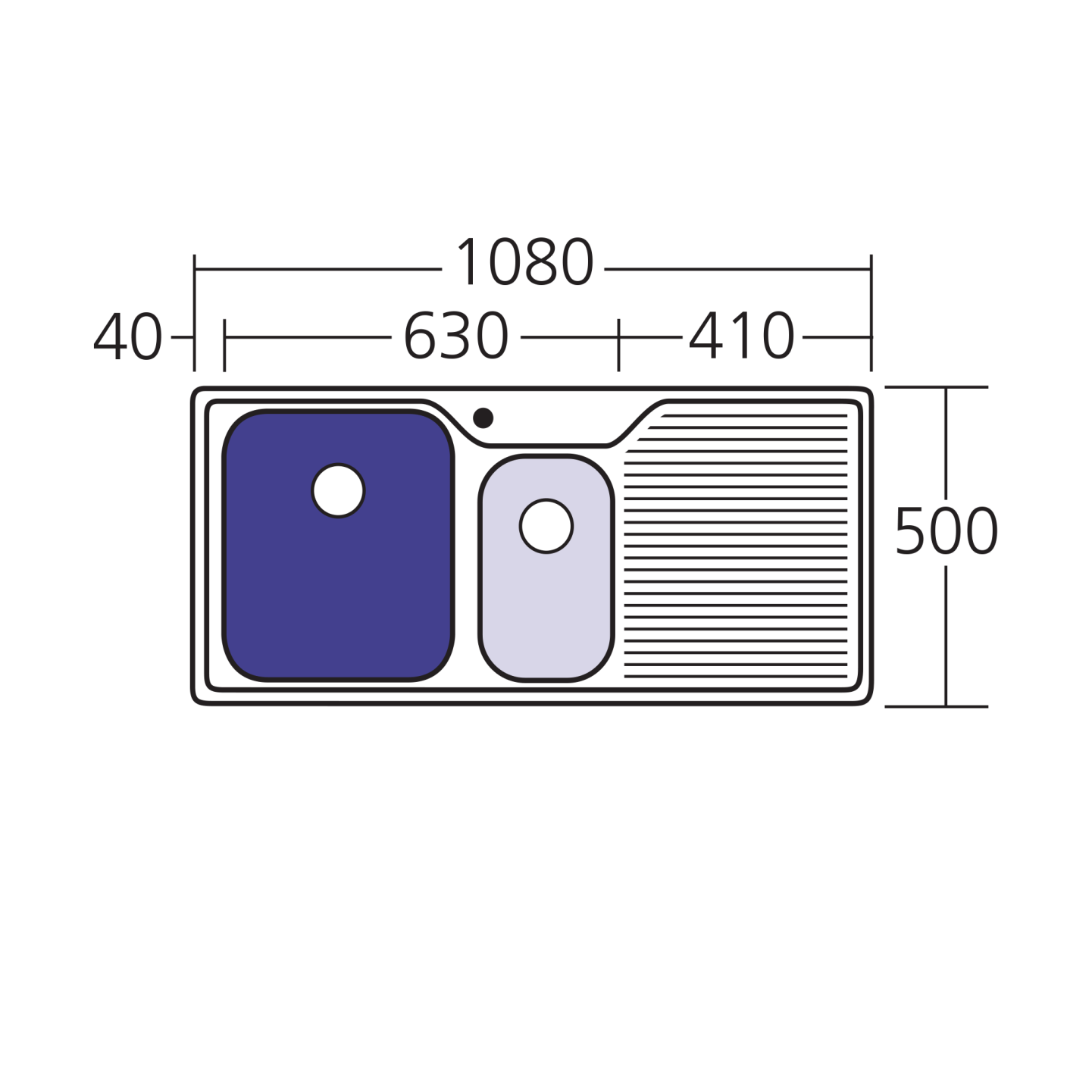

NP601 Technical Drawing
File

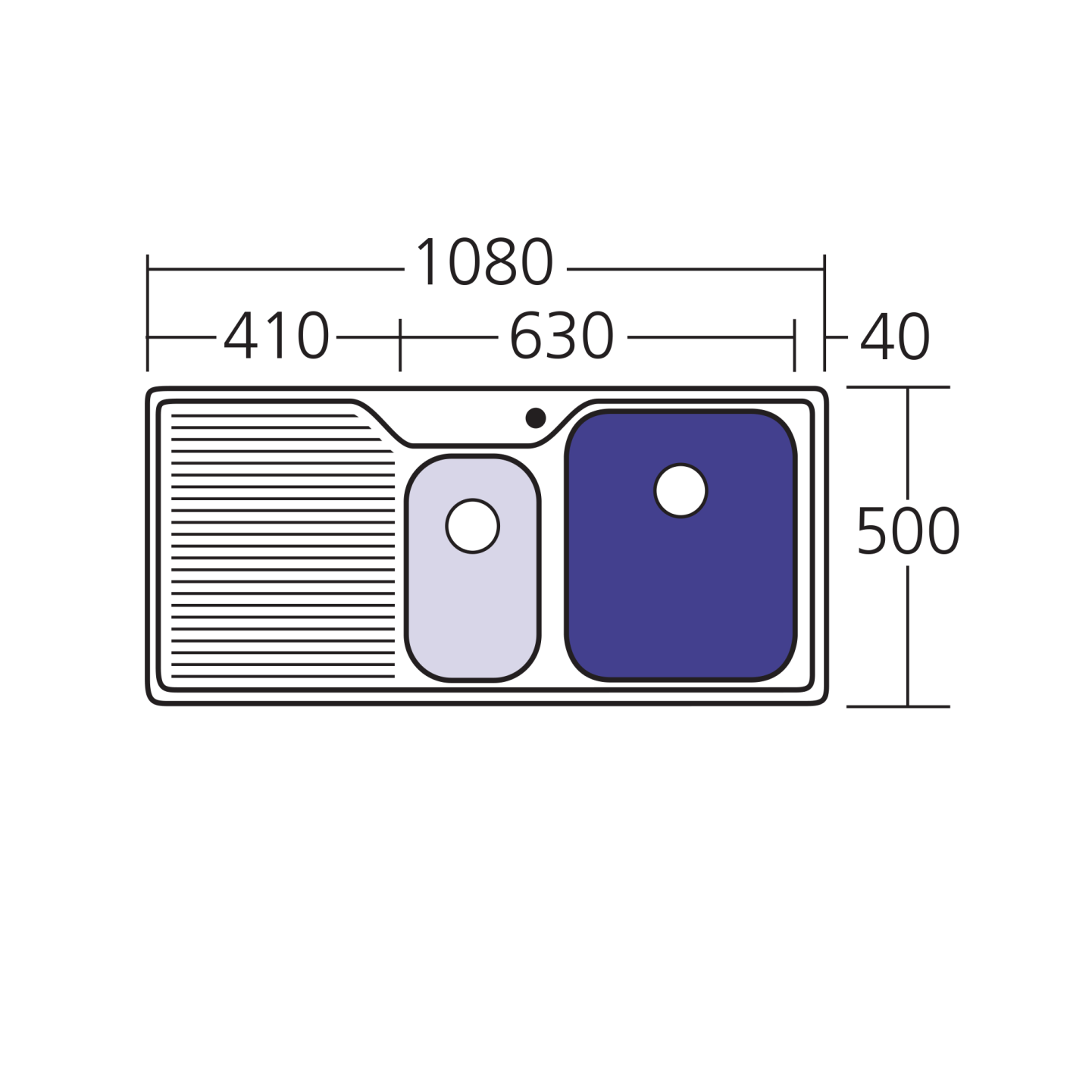

NP602 Technical Drawing
File
NP601 / NP602 includes bamboo chopping board (AC65) and colander (AC62)
File
Made in Australia

Nu-Petite 1 & 1/2 Bowl Topmount Sink With Drainer


Product Information

Construction 2 piece, bowls & drainer seam welded
Material 304 grade, 18/10 polished stainless steel (0.8mm thick)
Installation Topmount
Fixings Adjustable clips and sealing foam supplied
Cut out template 1060 x 480 x 15mm radius
Weight 8.0kg
Min cabinet size 700mm
Tap Holes Available 0 to 3 tap hole (specify when ordering)
Waste fittings 2 x 90mm basket wastes included
Overflow Not available
Carton size 1267 x 567 x 237mm
Warranty Lifetime manufacturer’s warranty (refer to Service and Warranty page)
Extra wide No
Number of bowls 2
Made in Australia

Nu-Petite 1 & 1/2 Bowl Topmount Sink With Drainer
