Model: SS2575

Model: SS2575-AU

Model: SS2575-BL

Model: SS2575-GM

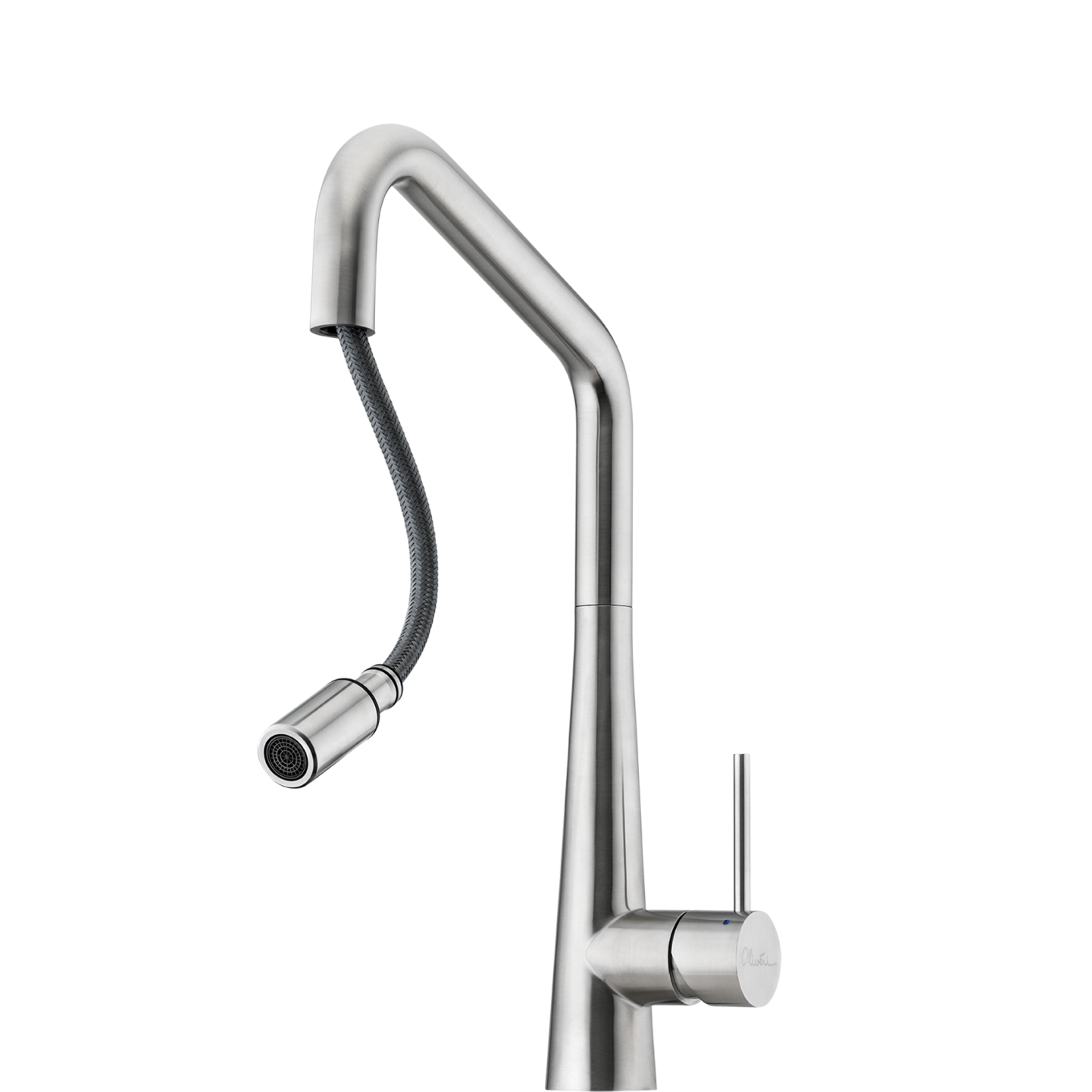

Pull-out spout

Technical Drawing

Product Information
Available Finishes

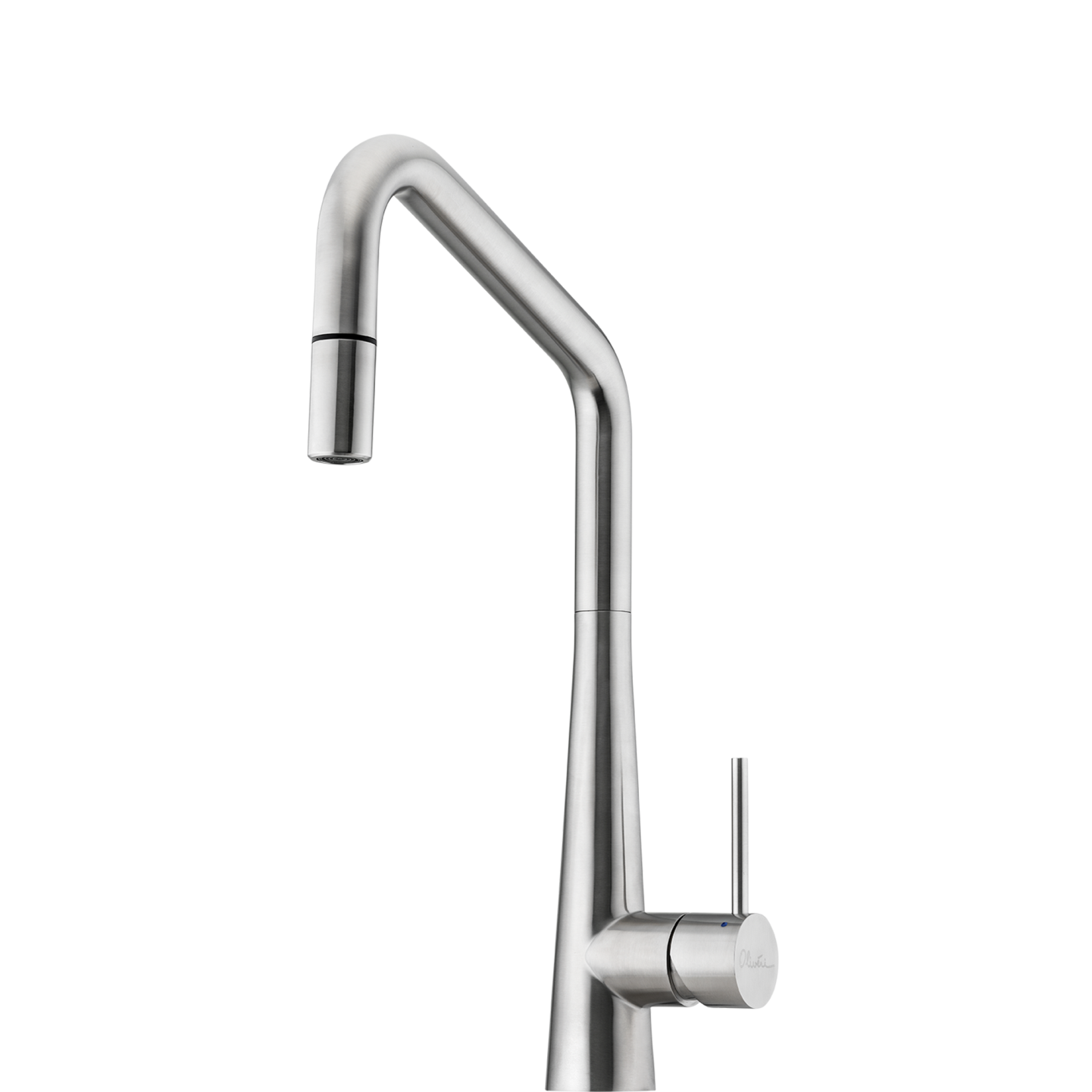

Stainless Steel (SS2575) | |

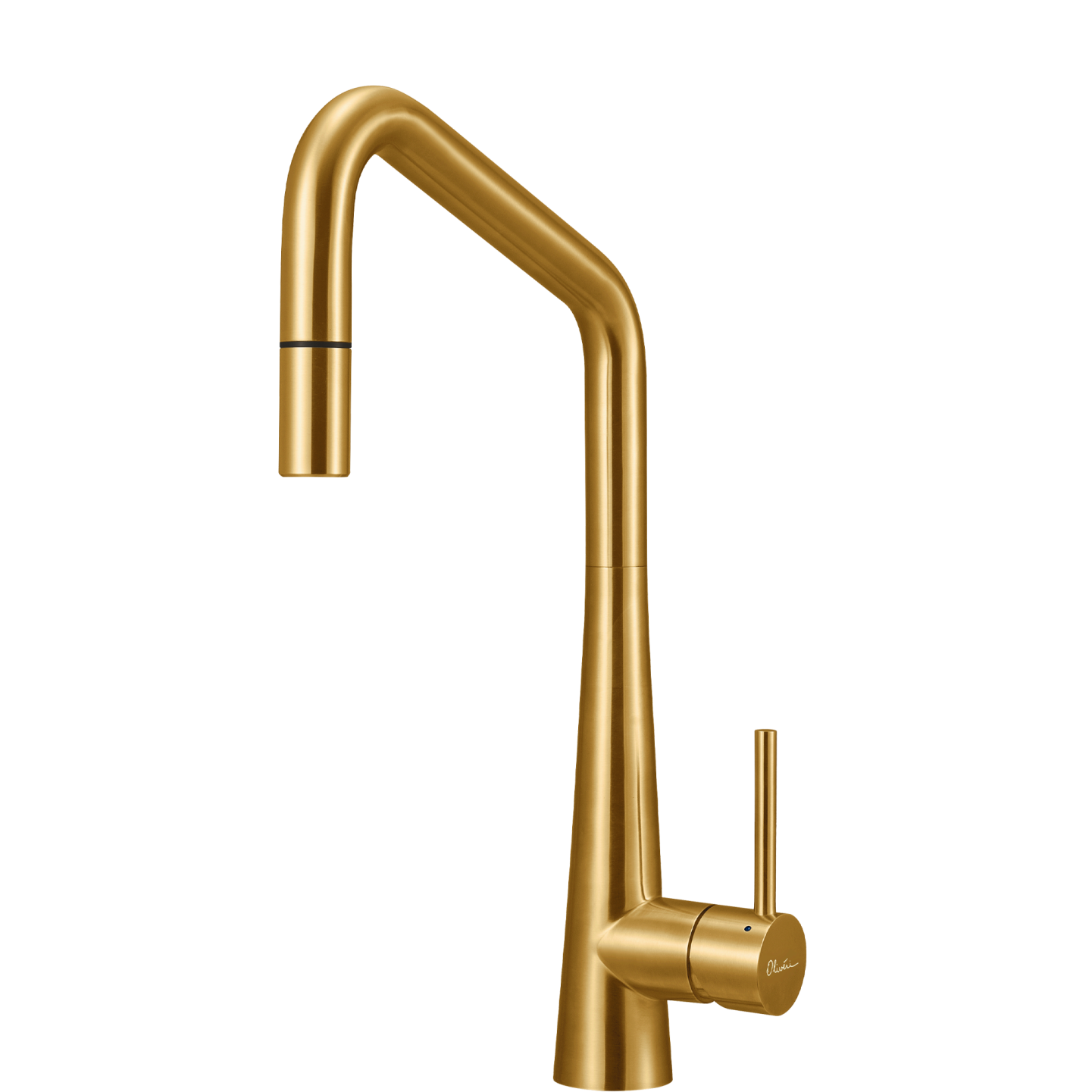

Brushed Gold (SS2575-AU) | |
Brushed Black (SS2575-BL) | |
Gunmetal (SS2575-GM) |
Mixer height | 424 mm |
---|---|
Wels rating | 4 Stars, 7.5 l/min |
Materials | 304 grade stainless steel body |
Cartridge size | 35 mm |
Cartridge type | Ceramic disc |
Spout height | 272 mm |
Maximum operating pressure | 500kpa |
Carton size | 735 x 325 x 75 mm |
Weight | 4.0kg |
Warranty | 10 years (refer to Service & Warranty page for details) |
Installation Instructions
Specifications
