Model: DZ101
File
Model: DZ102
File

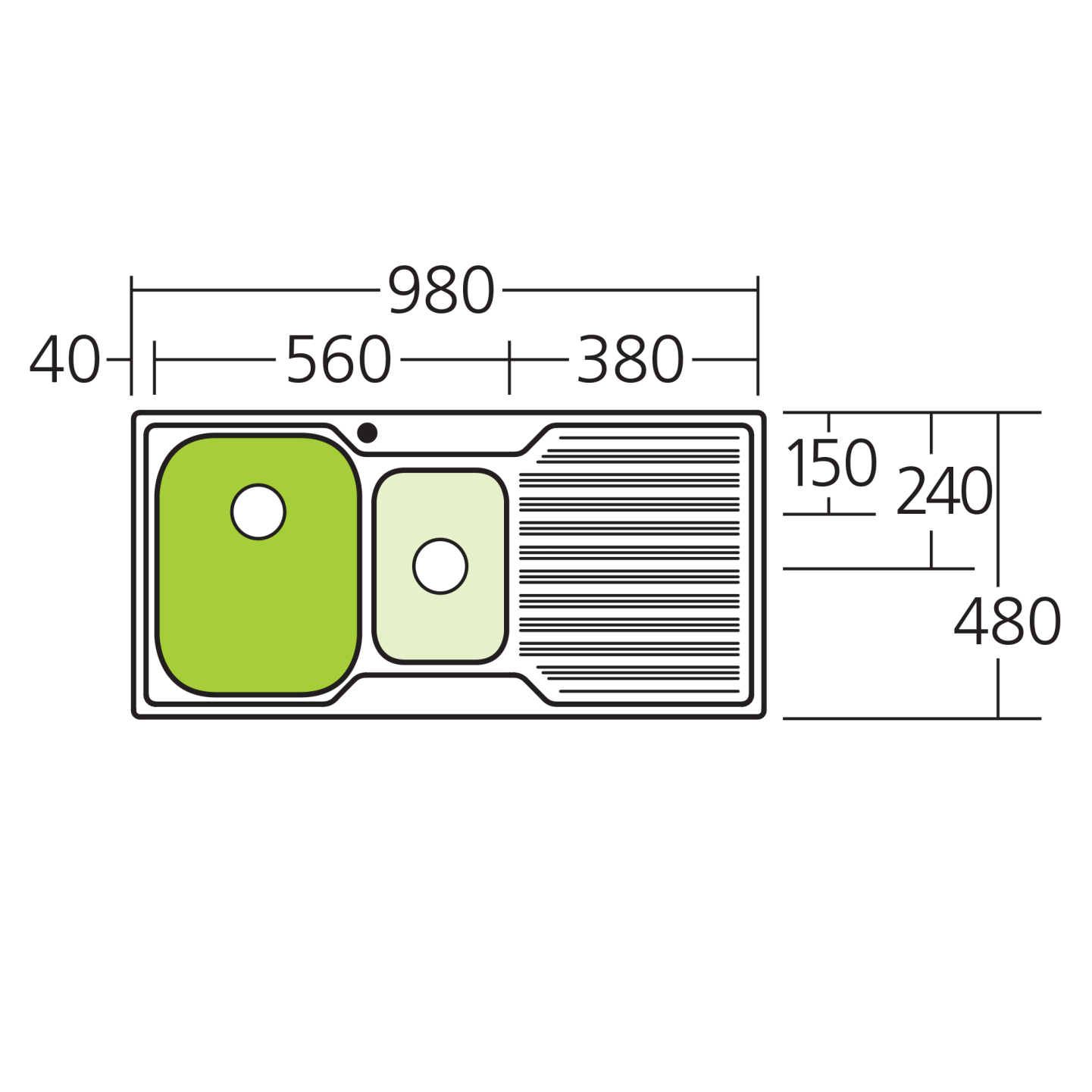

DZ101 Technical Drawing
File

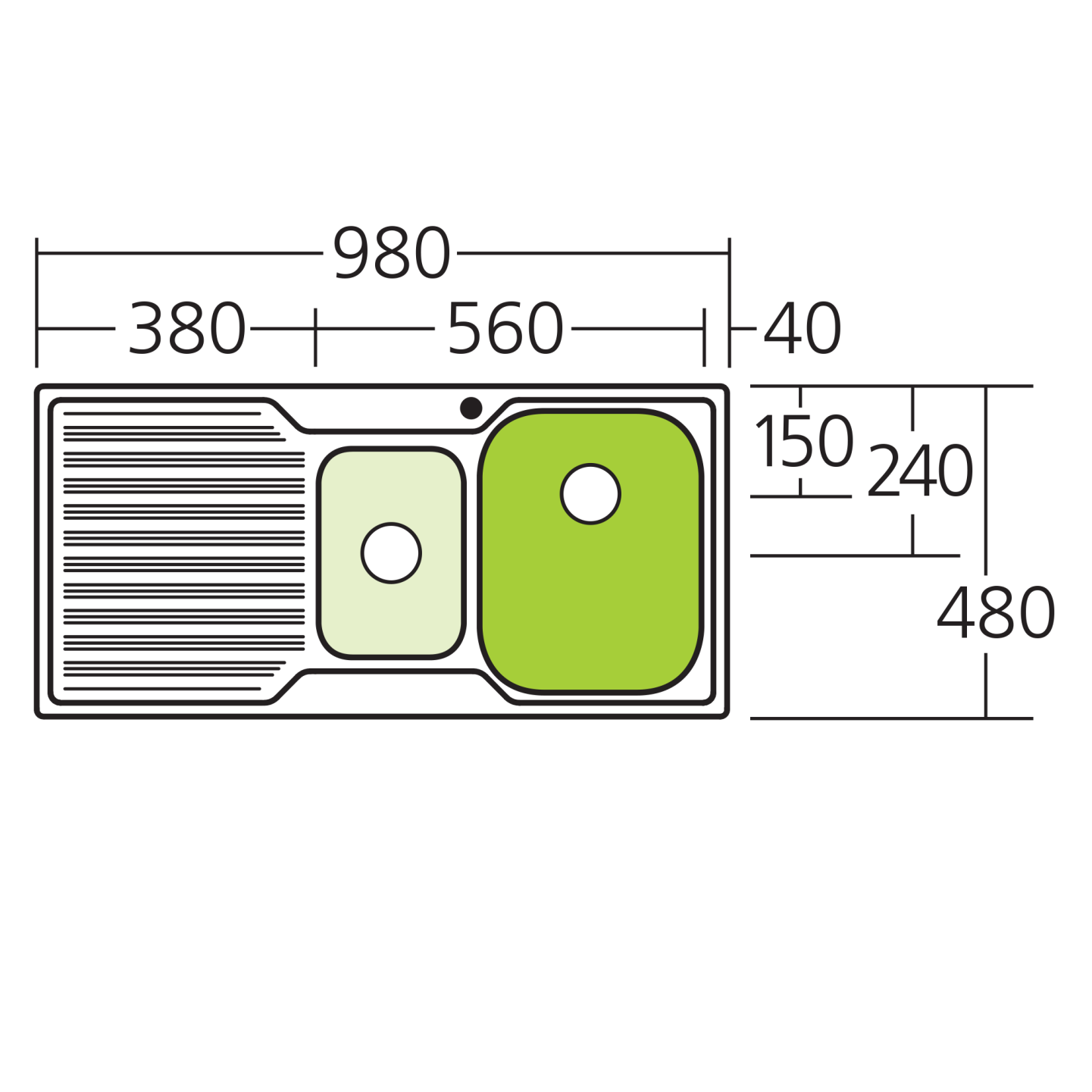

DZ102 Technical Drawing
File
DZ101 / DZ102 includes bamboo chopping board (AC15) and colander (AC18)
File
Made in Australia

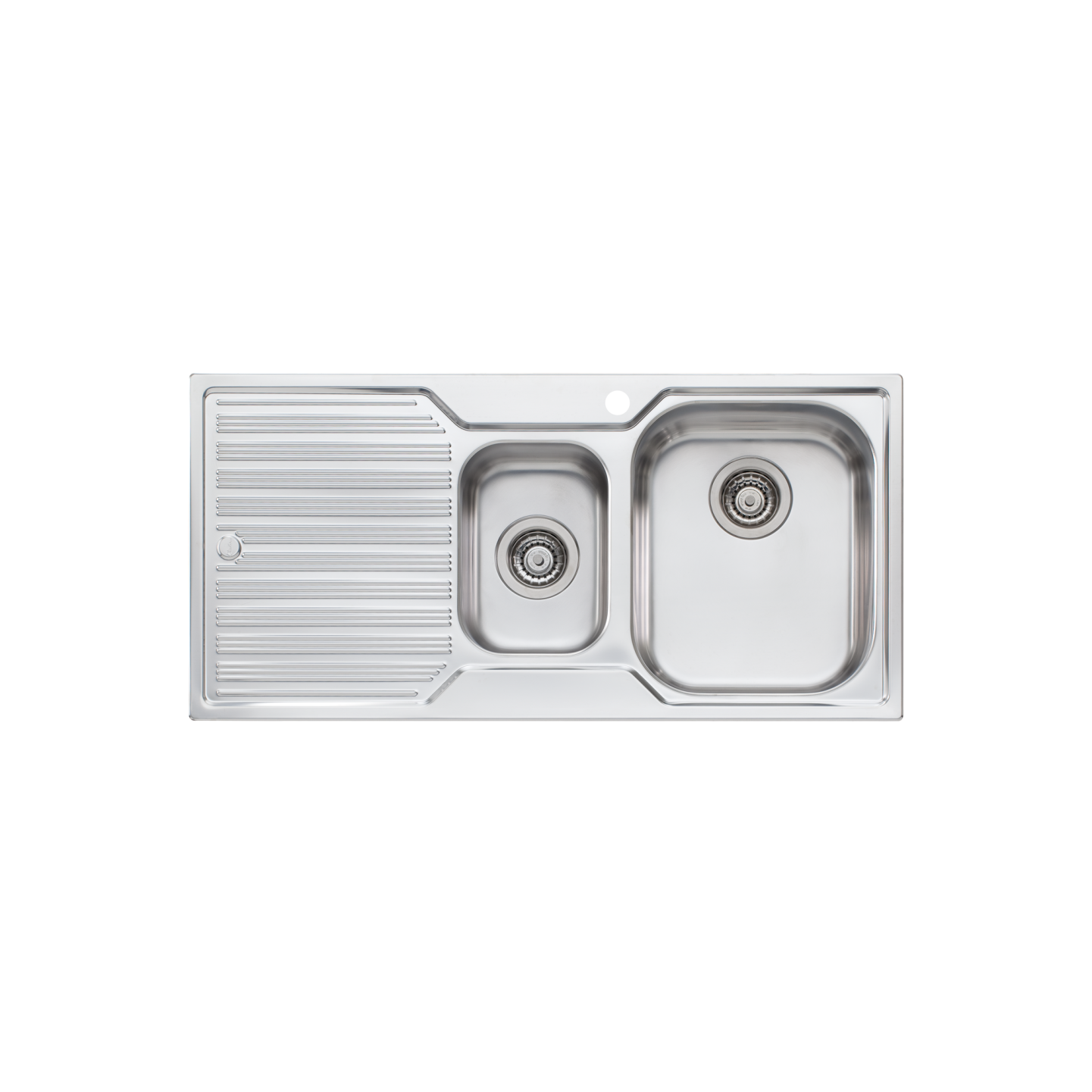

Diaz 1 & 1/2 Bowl Sink With Drainer


Product Information

Number of bowls 2
Warranty Lifetime manufacturer’s warranty (refer to Service and Warranty page)
Weight 7.0kg
Carton size 1060 x 570 x 250 mm
Overflow Not available
Waste fittings 2 x 90mm basket wastes included
Tap Holes Available 0 to 3 tap hole (specify when ordering)
Min cabinet size 600mm
Cut out template 960 x 460 x 15mm radius
Fixings Adjustable clips and sealing foam supplied
Installation Topmount
Material 304 grade, 18/10 polished stainless steel (0.8mm thick)
Construction 2 piece, bowls & drainer seam welded
Made in Australia

Diaz 1 & 1/2 Bowl Sink With Drainer
