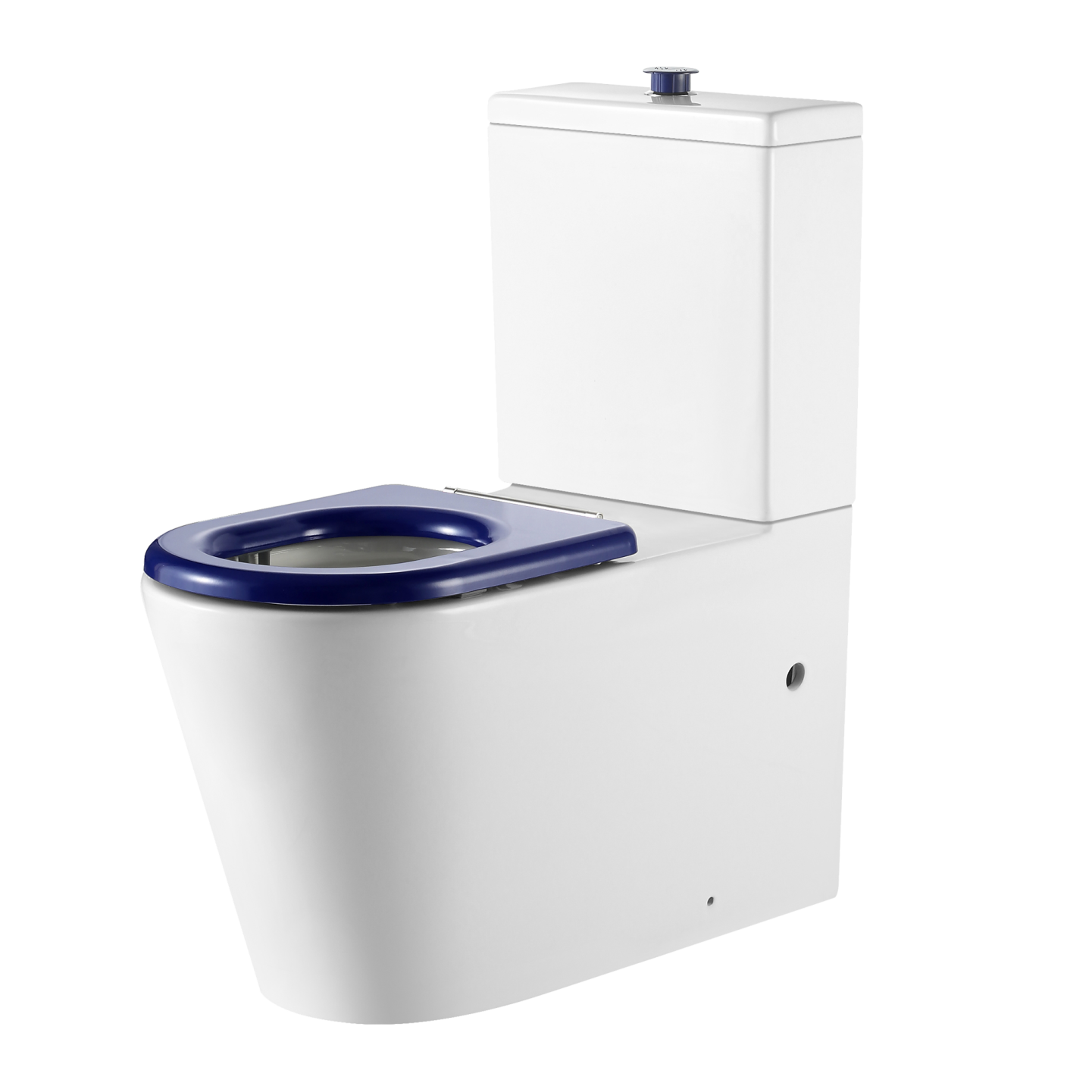

Vienna Back to Wall Care Suite Components
Pan: VI201C-P, Cistern: VI201C-C, Seat: ACC201-6CB, Buttons: ACC201-8CB.
Oliveri Back to Wall Care Toilet Suites are designed to comply with Australian Standards for accessible applications.
Basin and toilet options
The Vienna bathroom range includes basin and toilet suite options with a consistent design style.
Installation
Vienna basins options are either counter top or wall hung. Each toilet suite is for back to wall installation.
Comfort height, short projection toilets
Vienna includes suites with higher than usual seat height (460 mm) for easier access and greater comfort. A short projection suite (595 mm) is also available and is ideal for bathrooms with limited space.
Built to last
Premium glazed basin and toilet finishes are subjected to 200 hours of corrosion testing to ensure durability.
Curved Design
An elegant, beautifully rounded design in a bright white finish.
Warranty conditions apply. Under its policy of ongoing product development Oliveri Solutions may from time to time change product specification without notice. All dimensions given are approximate and should be checked prior to installation. Further warranty and installation details are available on this website.
Wels rating
4 Stars, 3.5 L average flush
Type
Back-to-Wall, accessible.
Installation
AS1428 Compliance: Refer to the latest standard to ensure installation meets the requirements. The installation of the toilet suite shall be in accordance with the normal minimum drain line grade requirements in AS/NZS 3500.2.
Pan
Rimless
Cistern
R&T dual flush cistern (4.5 L / 3 L) with raised grey cistern buttons
Trap(s)
Universal (S or P Trap)
Set outs
S-trap set out 140 mm - 250 mm as standard. P-trap set out 180 mm floor to centre of outlet.
Seat
Lock-in single flap blue toilet seat is provided as standard. UF compression moulded toilet seat, fitted with buffers and metal hinges.
Materials
Vitreous china pan and cistern, compression moulded polymer seat
Colours
White
Inlet
Bottom or back inlet
Weight
Pan 44.1 kg, cistern 14.2 kg
Parts list
Pan, cistern, buttons, seat, hinges, S-trap connector, seal ring, fixing plate, fixing screw, floor fixing screw.
Warranty
Commercial warranty: 10 years vitreous china cistern and pan replacement of product; 5 years replacement seat; 2 years valves and fittings; 1 year seals, buttons and labour (refer to Service & Warranty page for details).
Maintenance and care instructions
Clean with a soft cloth and warm soapy water as necessary - rinse and dry after cleaning. Avoid using abrasive or acid-based cleaning products.
