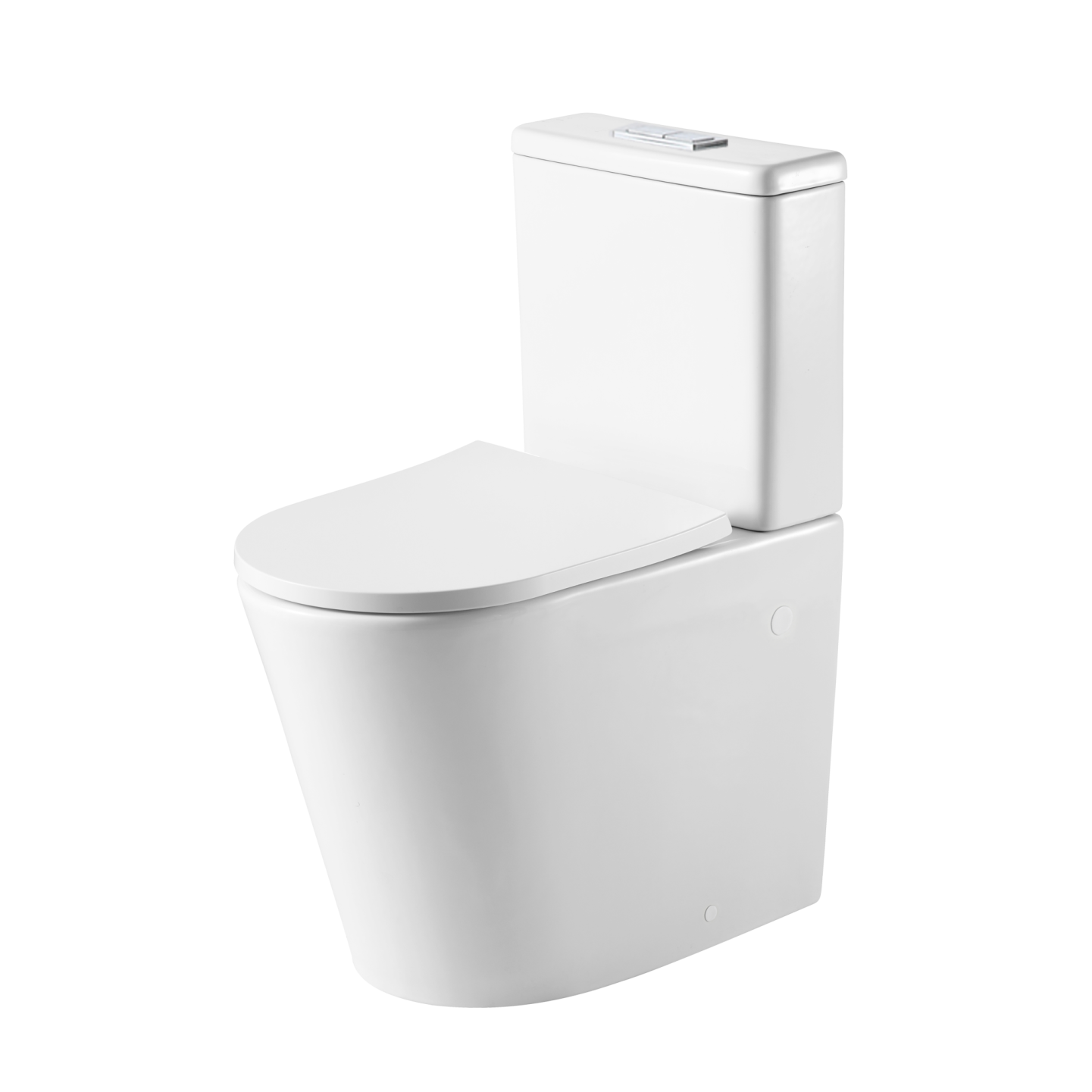

Space saving and comfort height toilet suite. This toilet protrudes a nominal distance of just 595 mm from the front edge of the pan to the wall behind the suite making it perfect for smaller spaces. The nominal height from the top of the pan (underside of seat) to the floor is 430 mm.
Vienna Short Projection Comfort Height Suite Components
Pan: VI600CHA-P, Cistern: VI600CHA-C, Seat Cover: VI600CHA-ST.
Basin and toilet options
The Vienna bathroom range includes basin and toilet suite options with a consistent design style.
Installation
Vienna basins options are either counter top or wall hung. Each toilet suite is for back to wall installation.
Comfort height, short projection toilets
Vienna includes suites with higher than usual seat height (460 mm) for easier access and greater comfort. A short projection suite (595 mm) is also available and is ideal for bathrooms with limited space.
Built to last
Premium glazed basin and toilet finishes are subjected to 200 hours of corrosion testing to ensure durability.
Curved Design
An elegant, beautifully rounded design in a bright white finish.
Warranty conditions apply. Under its policy of ongoing product development Oliveri Solutions may from time to time change product specification without notice. All dimensions given are approximate and should be checked prior to installation. Further warranty and installation details are available on this website.
Wels rating
4 Stars, 3.4 L average flush
Pan
Rimless
Trap(s)
Universal (S or P Trap), S Trap, P Trap
Cistern
WDI dual flush valve (4.5L/3.1L)
Set outs

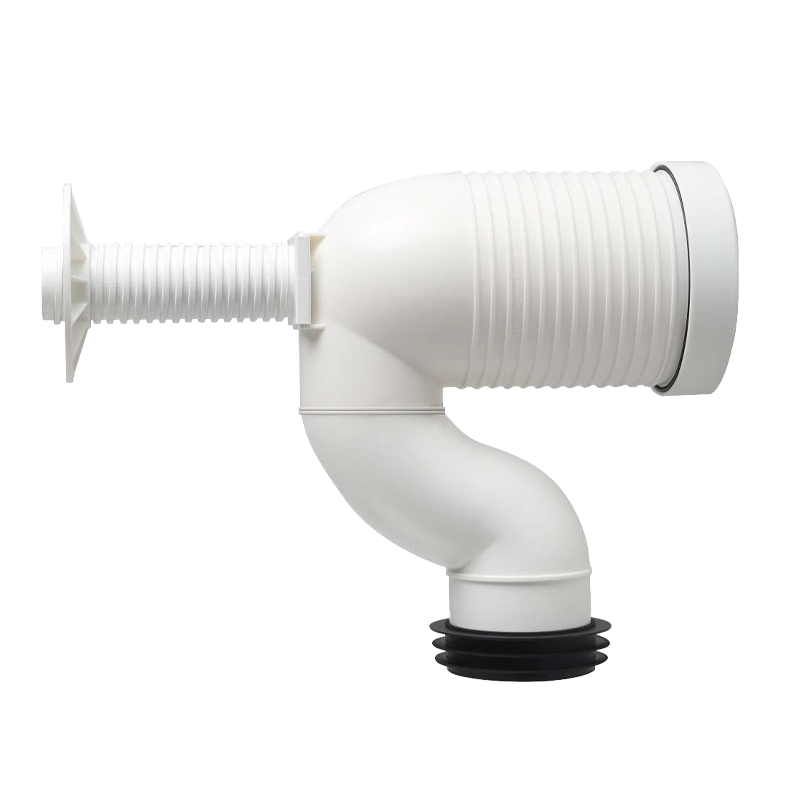

S-trap set out 75mm-155mm as standard. P-trap set out 180mm floor to centre of outlet. Optional S-trap set out 155mm - 205mm (SPB0201).
Inlet
Bottom or back inlet
Seat
Soft close quick release with metal hinges
Colours
White
Installation
The installation of the toilet suite shall be in accordance with the normal minimum drain line grade requirements in AS/NZS 3500.2.
Materials
Vitreous china pan and cistern, compression moulded polymer seat
Weight
51 kg
Parts list
UF toilet seat, WDI double flushing valve, square button, standard pipe.
Warranty
20 years vitreous china cistern and pan replacement of product; 5 years replacement seat; 2 years valves and fittings; 1 year seals and labour (refer to Service & Warranty page for details)
Maintenance and care instructions
Clean with a soft cloth and warm soapy water as necessary - rinse and dry after cleaning. Avoid using abrasive or acid-based cleaning products.
