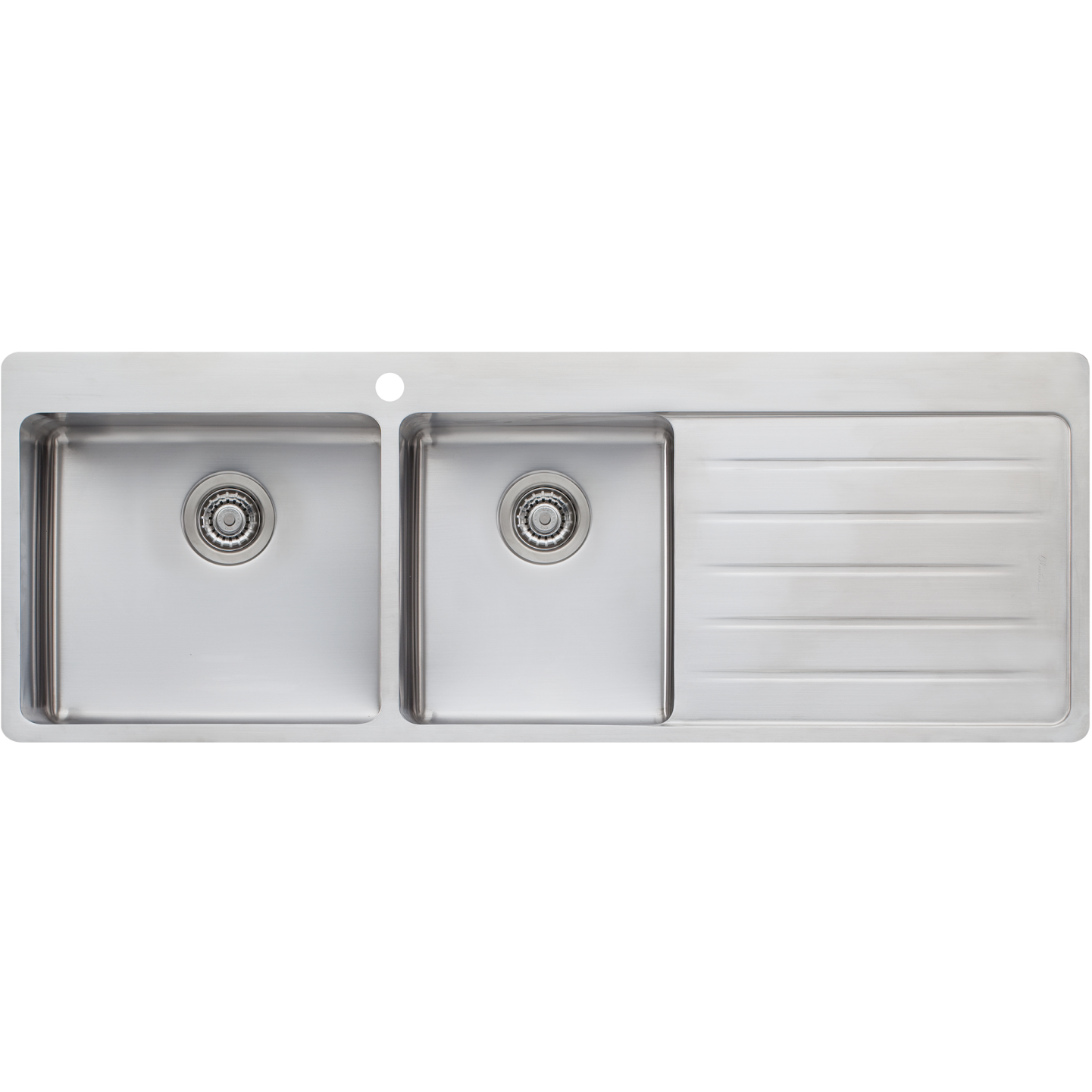

Model: SN1011
File

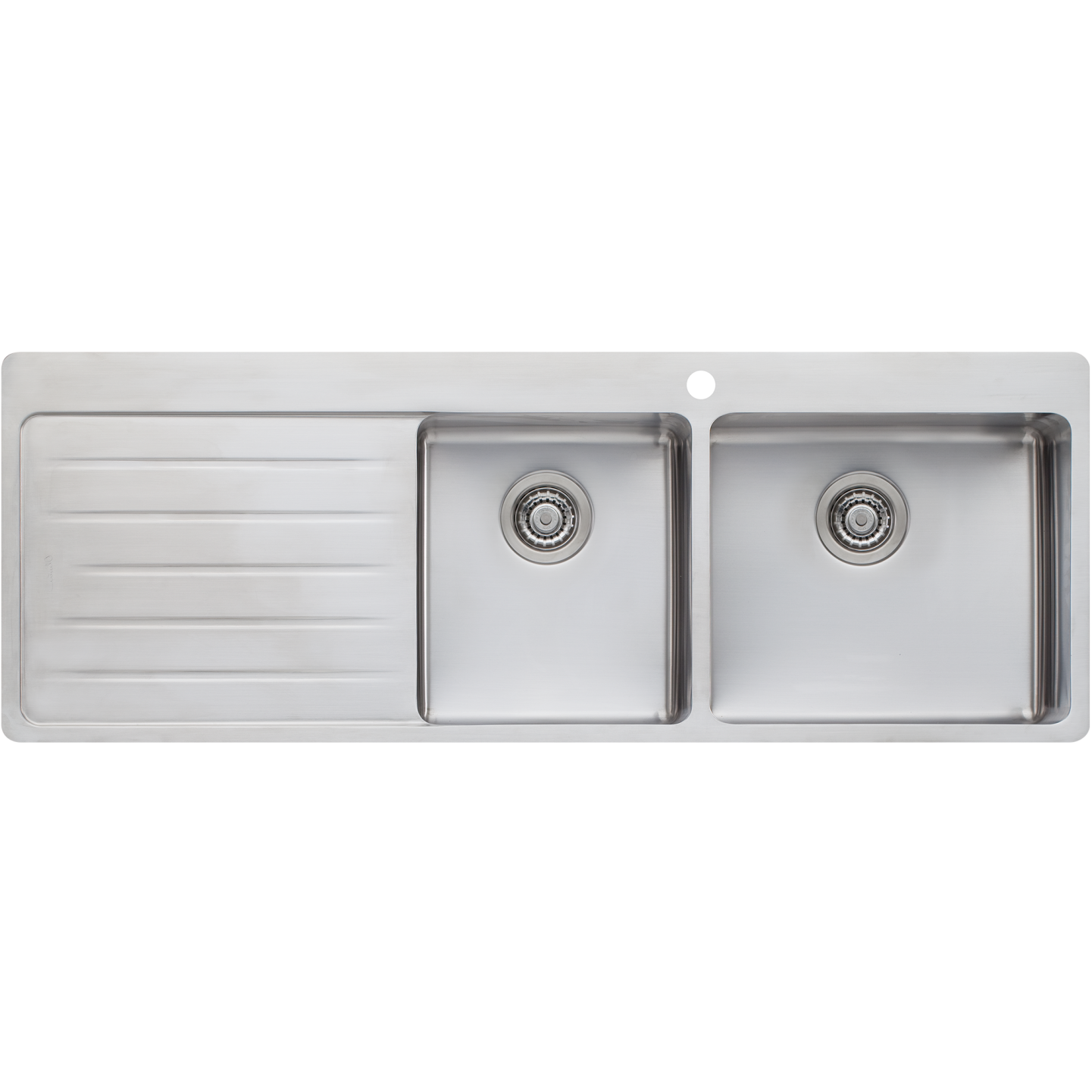

Model: SN1012
File

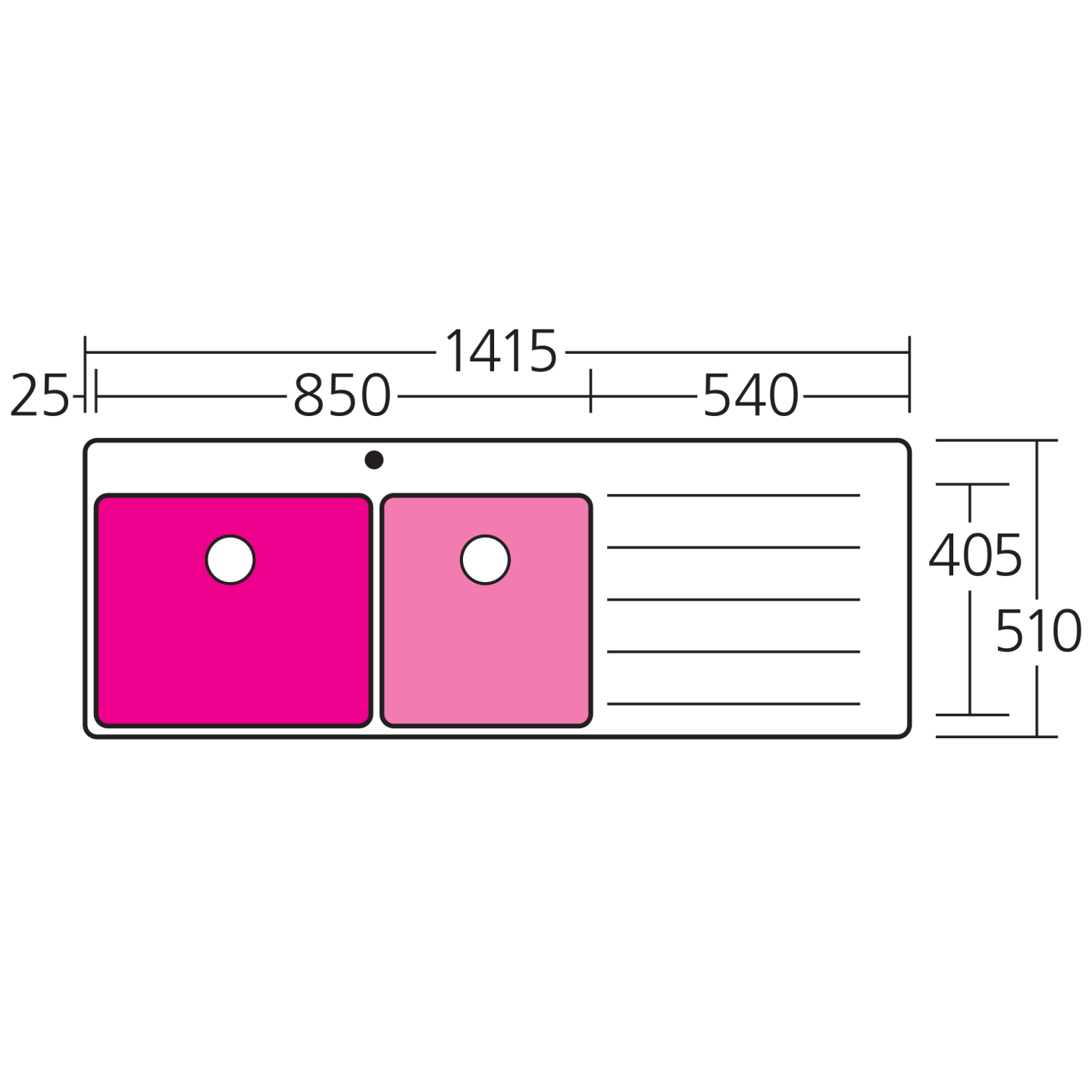

SN1011 Technical Drawing
File

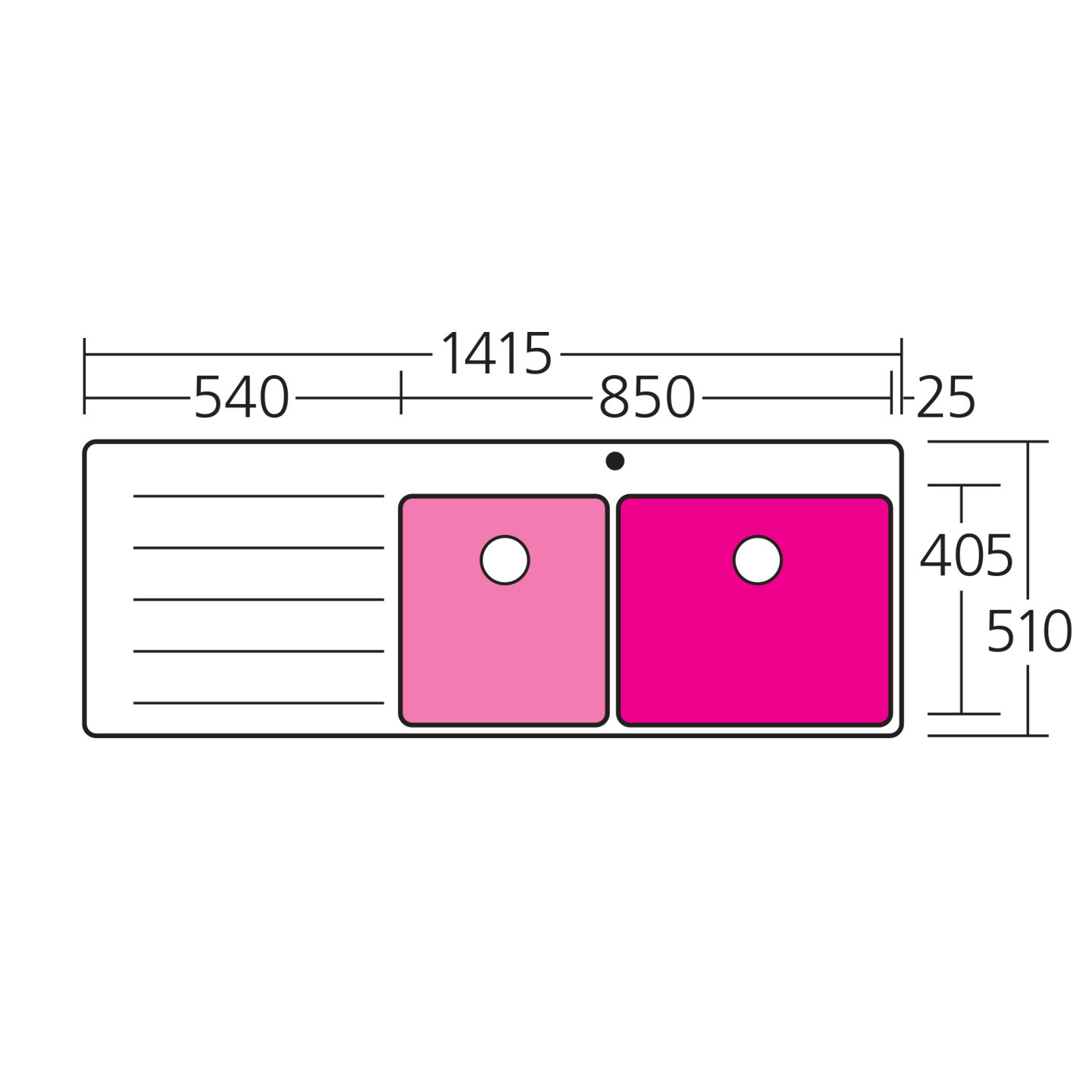

SN1012 Technical Drawing
File
SN1011 / SN1012 includes bamboo chopping board (ACP104F)
File

Sonetto 1 & 3/4 Bowl Topmount Sink With Drainer


Product Information

Construction Fabricated with 25mm radius corners, Softtone and soundproofing.
Material 304 grade, 18/10 brushed stainless steel (1.2mm thick)
Installation Topmount
Number of bowls 2
Fixings Topmount clips supplied
Cut out template 1399 x 494 x 10mm radius
Weight 22.0kg
Min cabinet size 900mm
Tap Holes Available 1 tap hole only
Waste fittings 2 x 90mm basket wastes included
Overflow Not available
Carton size 1470 x 560 x 255mm
Warranty Lifetime manufacturer’s warranty (refer to Service and Warranty Page)

Sonetto 1 & 3/4 Bowl Topmount Sink With Drainer
