Model: DZ10U
File

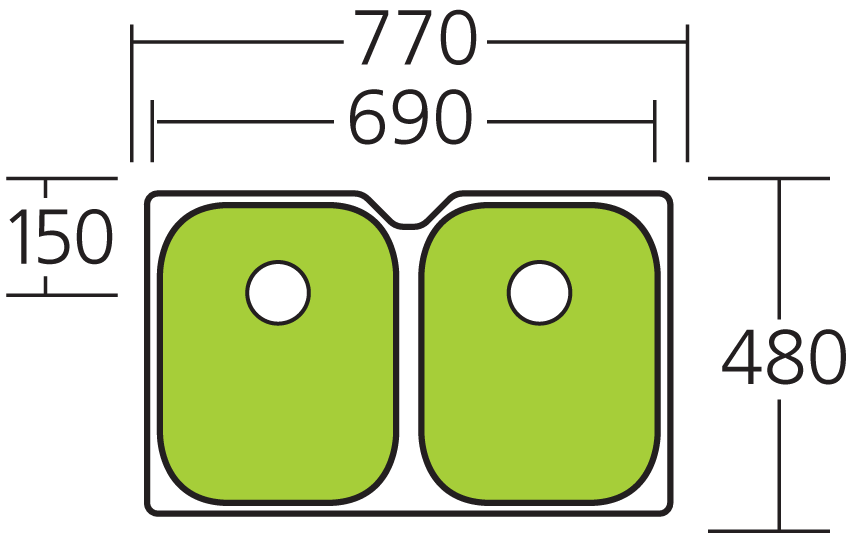

Technical Drawing
File
Made in Australia

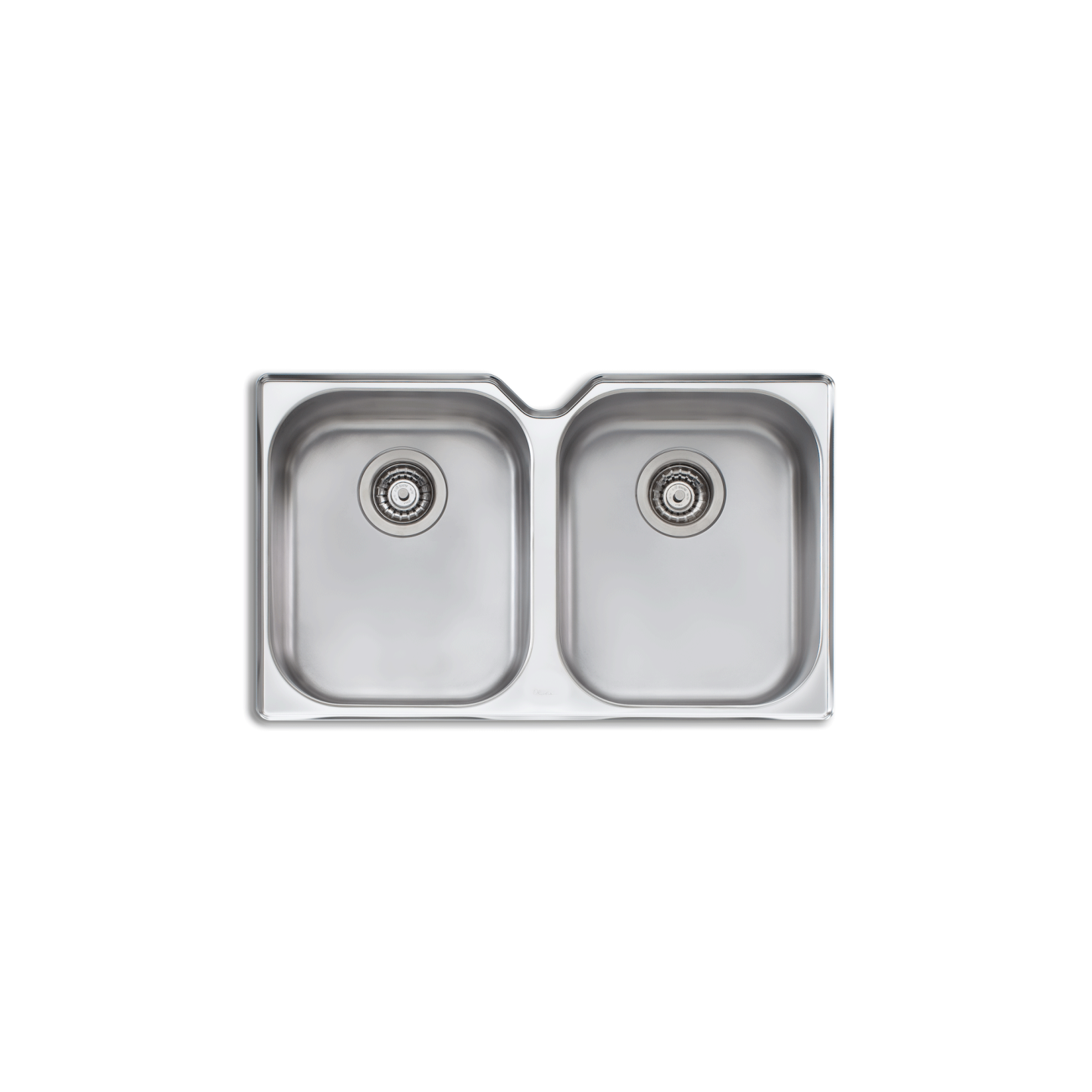

Diaz Double Bowl Undermount Sink


Product Information

Construction 2 piece, bowls & rim seam welded
Material 304 grade, 18/10 polished stainless steel (0.8mm thick)
Installation Undermount
Number of bowls 2
Cut out template Refer "Downloads" tab
Weight 6.0kg
Min cabinet size 800mm
Waste fittings 2 x 90mm basket wastes included
Overflow Not available
Carton size 837 x 547 x 237mm
Warranty Lifetime manufacturer’s warranty
Made in Australia

Diaz Double Bowl Undermount Sink
