The Apollo 1 and 3/4 Offset Bowl Sink is ideal for those who enjoy a larger main bowl, with the practical addition of a 3/4 bowl. This model is complete with integrated colander and bamboo preparation board which fit comfortably within the main bowl.

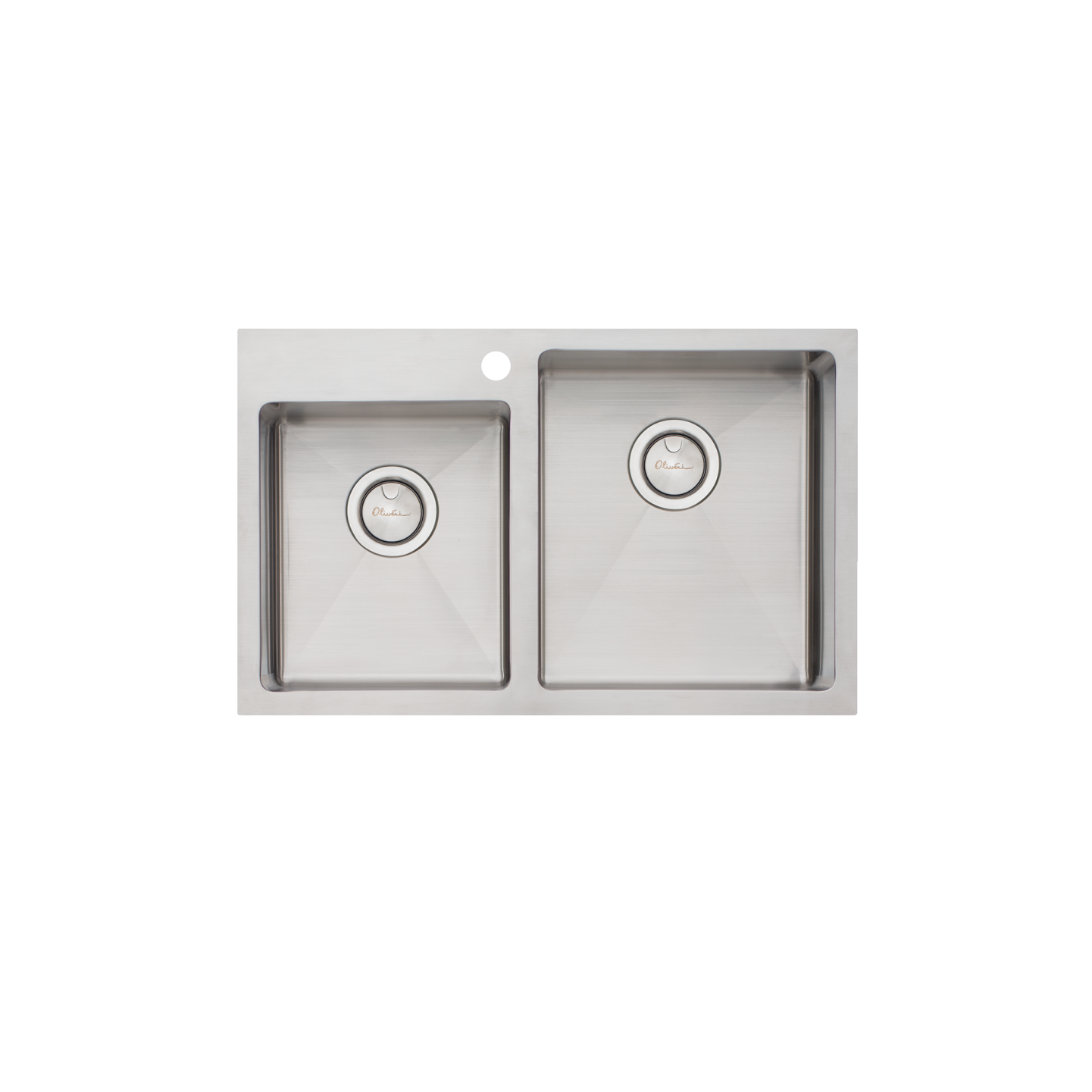

Model: AP1416

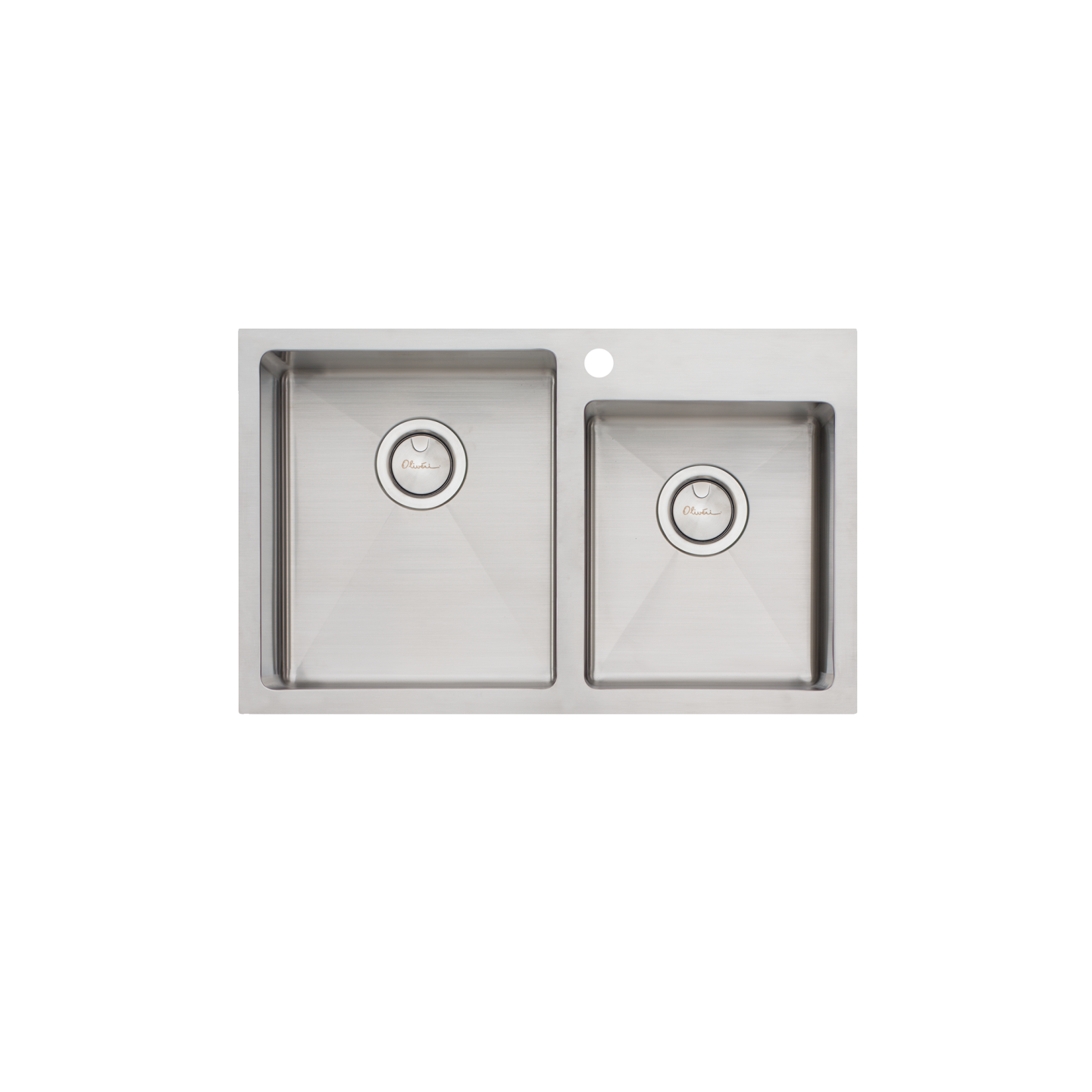

Model: AP1415

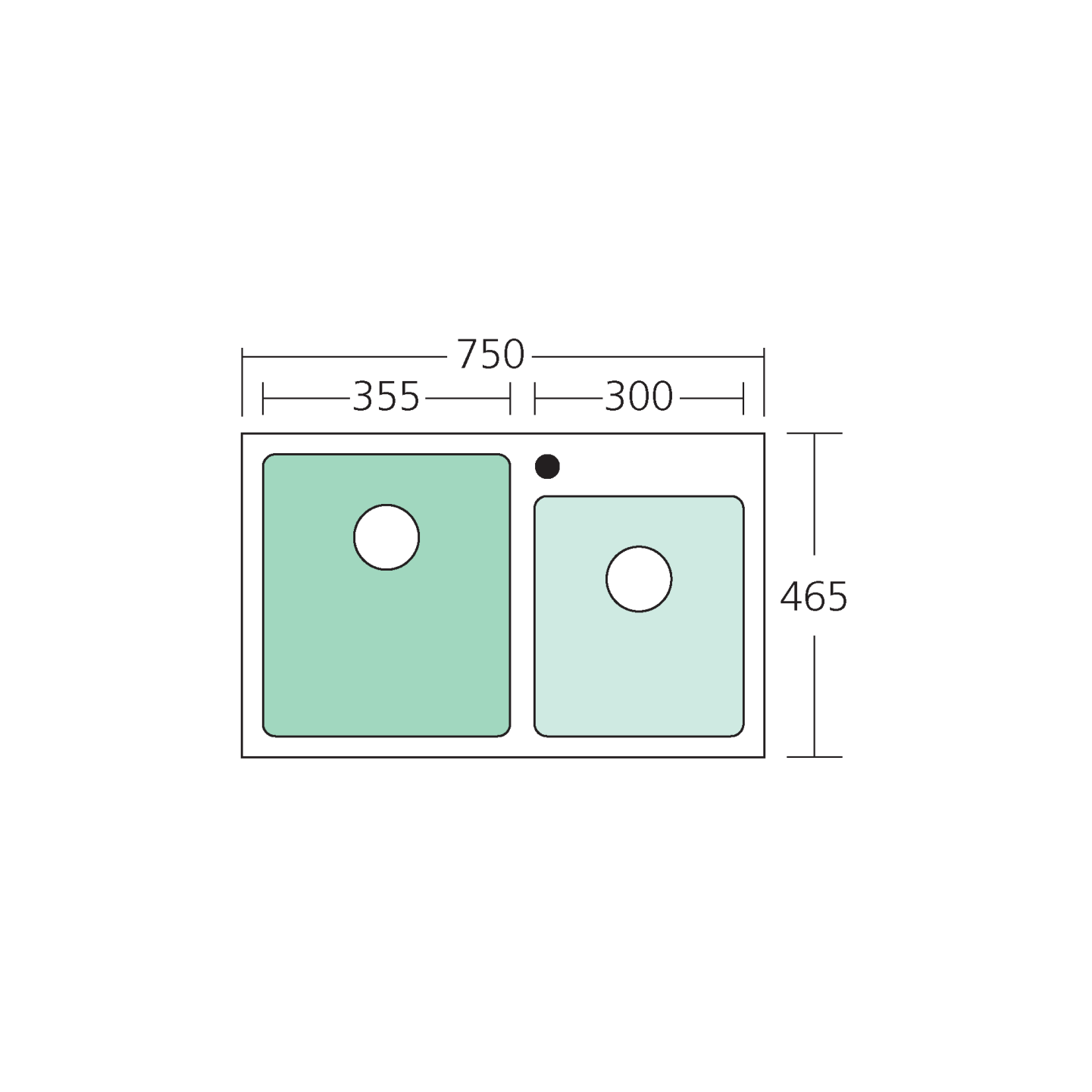

AP1415 Technical Drawing
AP1416 Technical Drawing
AP1415 / AP1415 includes bamboo chopping board (ACP124) and stainless steel colander (ACP134)
Product Information
| Construction | Fabricated with 18mm radius corners, Softtone® and soundproofing. |
|---|---|
| Material | 304 grade, 18/10 brushed stainless steel (1.2mm thick) |
| Installation | Undermount, Topmount, or Flushmount |
| Sink size | 750W x 465H mm |
| Number of bowls | 2 |
| Bowl Size(s) |
Main Bowl
|
| Fixings | Topmount clips supplied |
| Cut out template | Refer to 'Downloads' tab |
| Weight | 9.0kg |
| Min cabinet size | 800mm |
| Tap Holes | Available 1 tap hole only (suitable for additional tap holes) |
| Waste fittings | 2 x 90mm basket waste included |
| Overflow | Not available |
| Carton size | 810 x 525 x 270 mm |
| Warranty | Lifetime manufacturer’s warranty (refer to Service and Warranty Page) |
Installation Guides
Specifications
Cut-out Templates
2D Files
3D Files
- AP1416 3D Drawing (.dwg)
- AP1416 3D Revit (.rfa)
- AP1416 3D Industry Foundation Classes (.ifc)
- AP1416 3D SketchUp (.skp)
- AP1416 3D Autodesk 3D Studio (.3DS)
- AP1415 3D Revit (.rfa)
- AP1415 3D Industry Foundation Classes (.ifc)
- AP1415 3D Autodesk 3D Studio (.3DS)
- AP1415 3D SketchUp (.skp)
- AP1415 3D Drawing (.dwg)
