Model: OS127-PSC
File

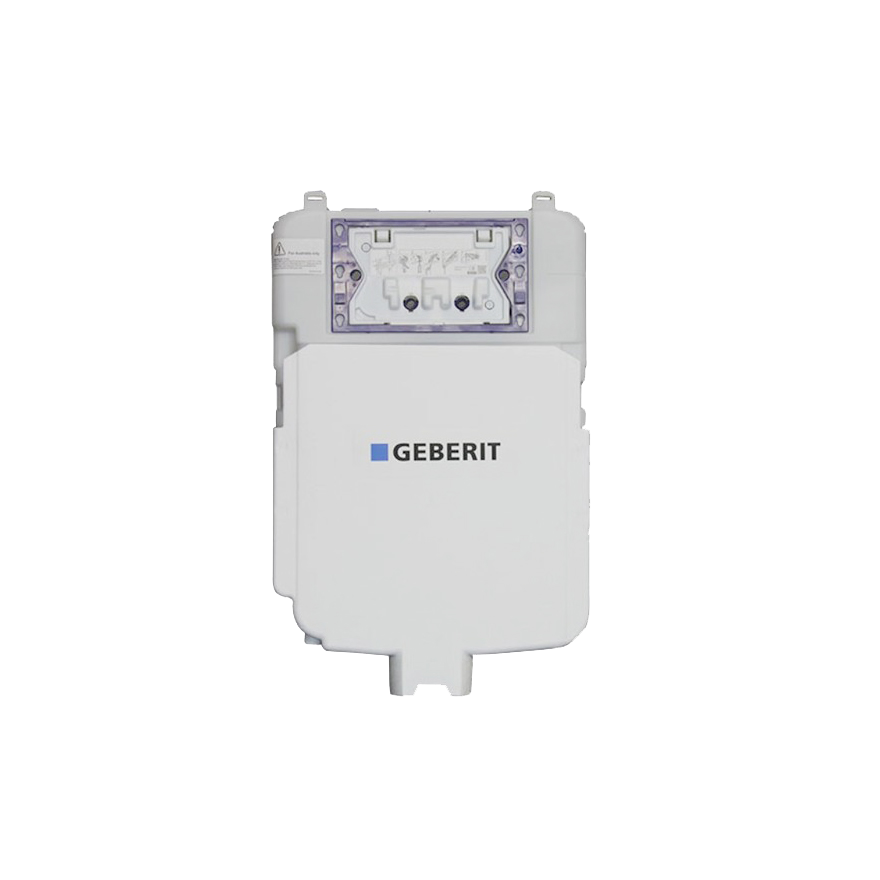

Sigma8 Concealed Cistern - Included
File
SPB0201: Optional Set-out Connector - Sold Separately
File
RDPPCR: Chrome Concealed Cistern Flush Plate with Round Buttons - Sold separately
File
RDPPBK: Black Concealed Cistern Flush Plate with Round Buttons - Sold separately
File
RDPPWH: Matte White Concealed Cistern Flush Plate with Round Buttons - Sold separately
File
RDPPMB: Matte Black Concealed Cistern Flush Plate with Round Buttons - Sold separately
File

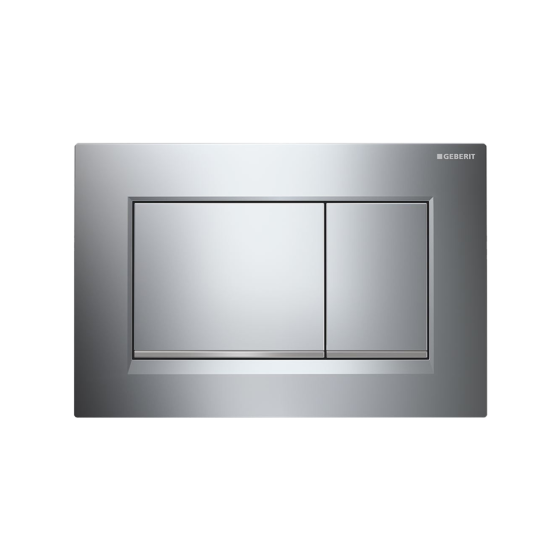

SQPPCR: Chrome Concealed Cistern Flush Plate with Square Buttons - Sold separately
File

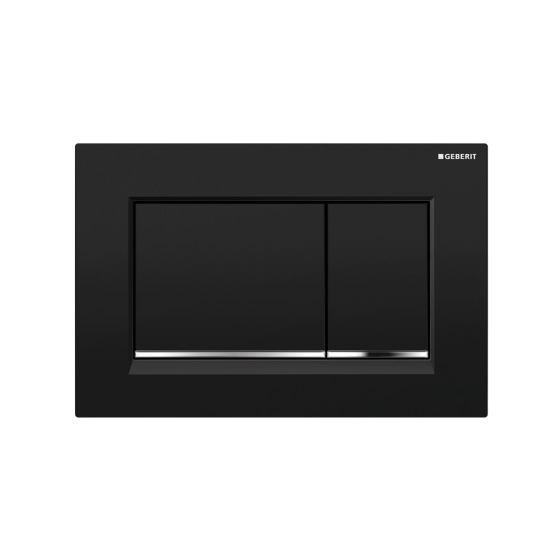

SQPPBK: Black Concealed Cistern Flush Plate with Square Buttons - Sold separately
File

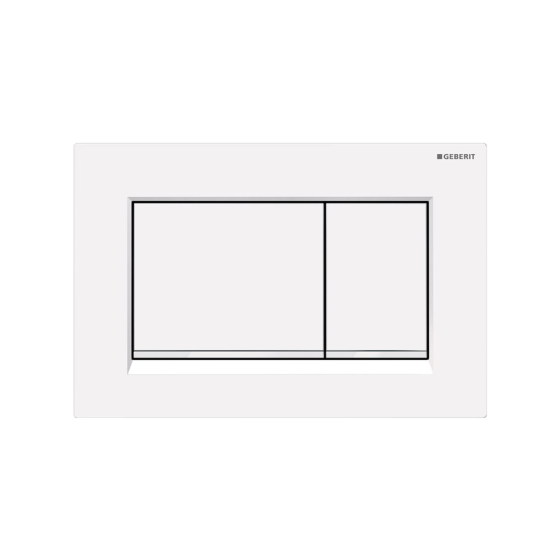

SQPPWH: Matte White Concealed Cistern Flush Plate with Square Buttons - Sold separately
File

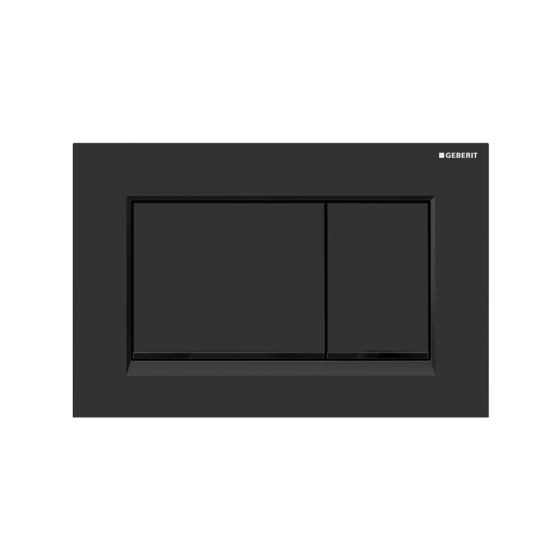

SQPPMB: Matte Black Concealed Cistern Flush Plate with Square Buttons - Sold separately
File

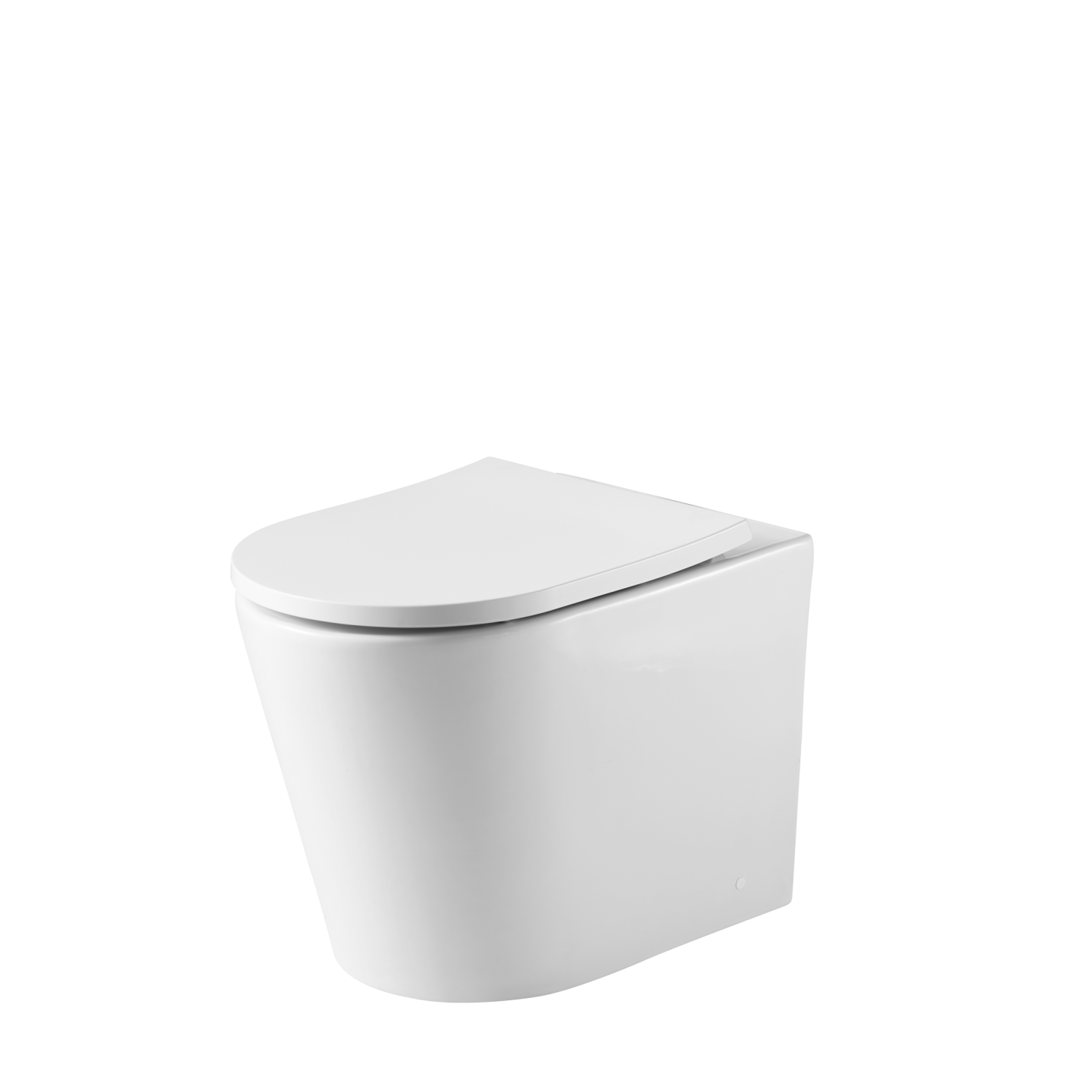

Oslo Wall Faced Toilet Suite


Product Information

Suite includes:

Rimless pan; soft-close, quick release seat; Geberit Sigma8 concealed dual flush cistern*; fittings and fixtures.

*NOTE: Geberit flush plate actuator sold separately

WELs Rating 4 Stars, 3.5 L average flush
Pan Rimless
Trap(s) Universal (S or P Trap)
Cistern Geberit Sigma8 Concealed Cistern (4.5/3L)

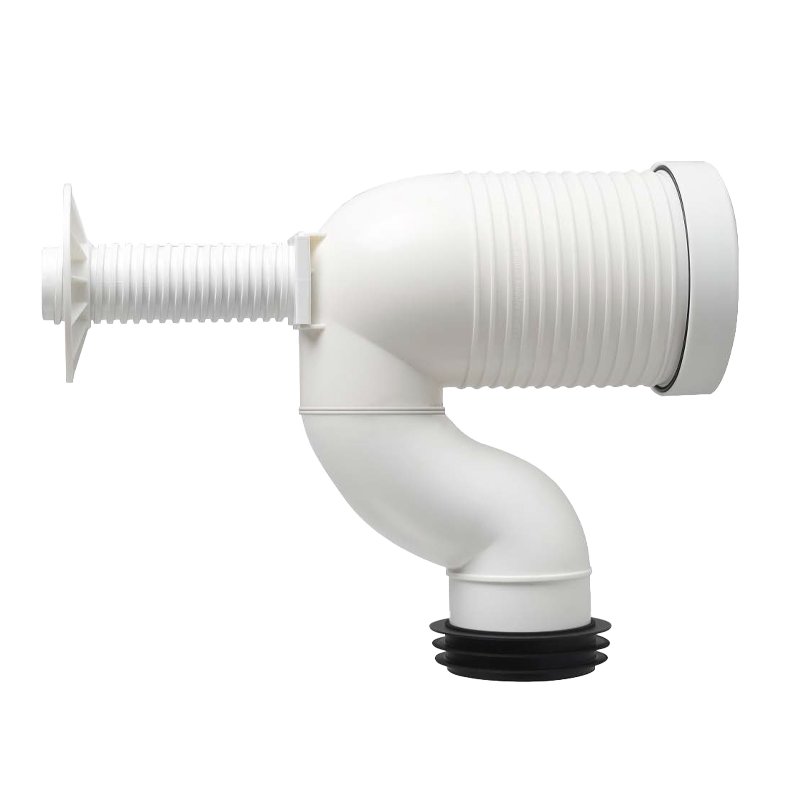

Set outs S-trap set out 50mm - 75mm as standard. P-trap set out 185mm floor to centre of outlet. Optional S-trap set out 150mm - 170mm (SPB0201).
Seat Soft close quick release with metal hinges
Colours White
Installation The installation of the toilet suite shall be in accordance with the normal minimum drain line grade requirements in AS/NZS 3500.2.
Materials Vitreous china pan and cistern, compression moulded polymer seat
Weight 32.88kg
Parts list Round seat cover, hinge, decorative cover, S-trap connector, seal ring, fixing plate, fixing screw, floor fixing screw
Warranty 20 years vitreous china cistern and pan replacement of product; 5 years replacement seat; 2 years valves and fittings; 1 year seals and labour (refer to Service & Warranty page for details)
Maintenance and care instructions Clean with a soft cloth and warm soapy water as necessary - rinse and dry after cleaning. Avoid using abrasive or acid-based cleaning products.

Oslo Wall Faced Toilet Suite
