Model: NA369
File
SPB0201: Optional Set-out Connector - Sold Seperately
File

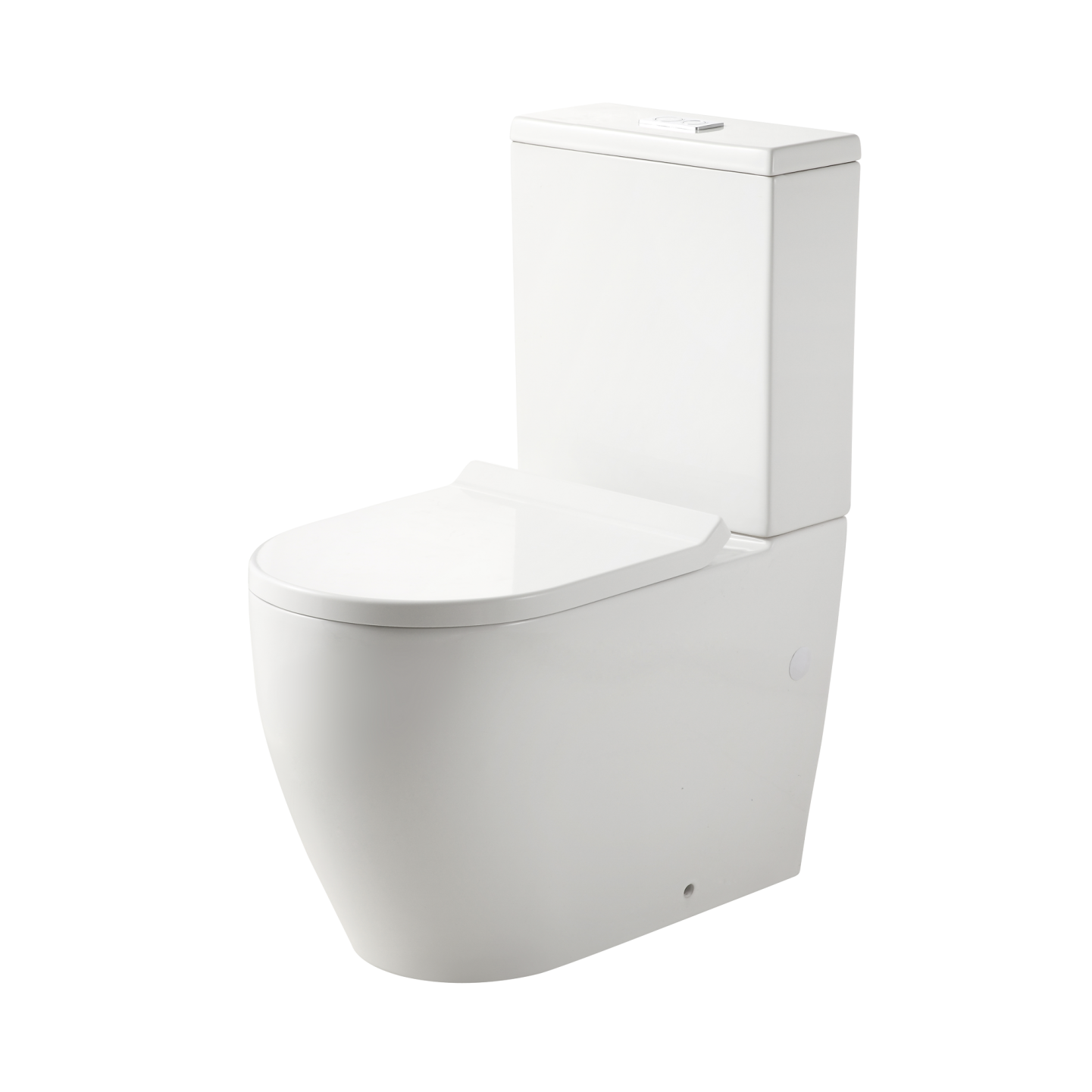

Naples Back To Wall Toilet Suite


Product Information

Naples Suite consists of Pan: NA369C-1P, Cistern: NA369C-2C, Seat Cover: NA5011

WELs Rating 4 Stars, 3.5 L average flush
Pan Rimless
Trap(s) Universal (S or P Trap), S Trap, and P Trap
Cistern Geberit dual flush valve (4.5L/3L)
Set outs S-trap set out 50mm - 160mm as standard. P-trap set out 185mm floor to centre of outlet. Optional S-trap set out 150mm - 220mm (SPB0201).
Inlet Bottom or back inlet
Seat Soft close quick release with metal hinges
Colours White
Warranty 10 years vitreous china cistern and pan replacement of product; 2 years valves, fittings and seat; 1 year seals and labour (refer to Service & Warranty page)
Maintenance and care instructions Clean with a soft cloth and warm soapy water as necessary - rinse and dry after cleaning. Avoid using abrasive or acid-based cleaning products.
Installation Instructions
Specifications

Naples Back To Wall Toilet Suite
